chain driven belt
Built for projects where chain pitch, rod route, mesh support, sprocket tooth profile, and side alignment need engineering review before production.
Application
Heavy transfer, washing, drying, frying, cooling, tunnel, and positive-drive conveyor routes
Review Focus
Chain pitch / rod route / mesh surface / sprocket tooth profile / edge alignment
Project Route
New equipment supply, old belt replacement, or belt-and-sprocket review before production
buyer questions first
For chain-driven conveyor belts, the customer is usually not only buying a replacement belt. They are trying to avoid pitch mismatch, sprocket wear, edge pressure, load sagging, and packing deformation.
Chain-driven belts need the chain pitch, rod position, sprocket tooth profile, and shaft route reviewed together. A new belt can fail early if the chain route is treated separately from the sprocket.
Overall width, rod diameter, rod pitch, mesh opening, chain center distance, and left-right edge alignment should be confirmed before production release.
For replacement projects, sprocket tooth count, bore, keyway, material, and wear condition can be reviewed so the belt and drive components are matched as one system.
The review can start from old belt photos, samples, pitch measurement, sprocket photos, product load, temperature, cleaning route, and running condition evidence.
product structure evidence
A 3 x 3 structure keeps the product page clear: product type, edge route, drive matching, measurement, application, and release checks.
review evidence

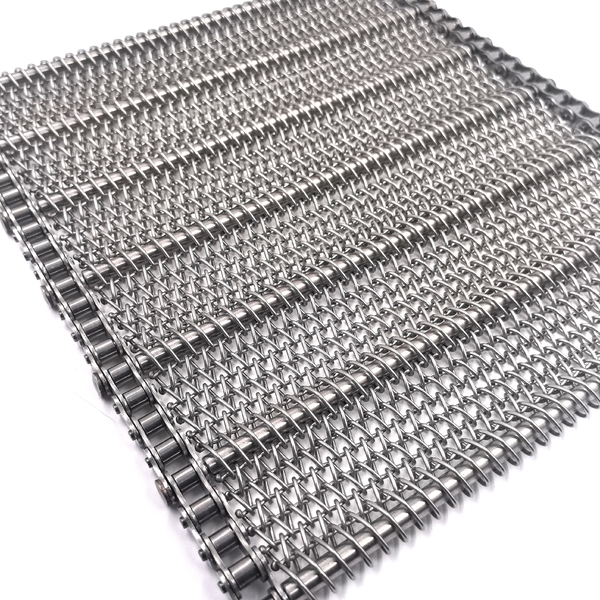

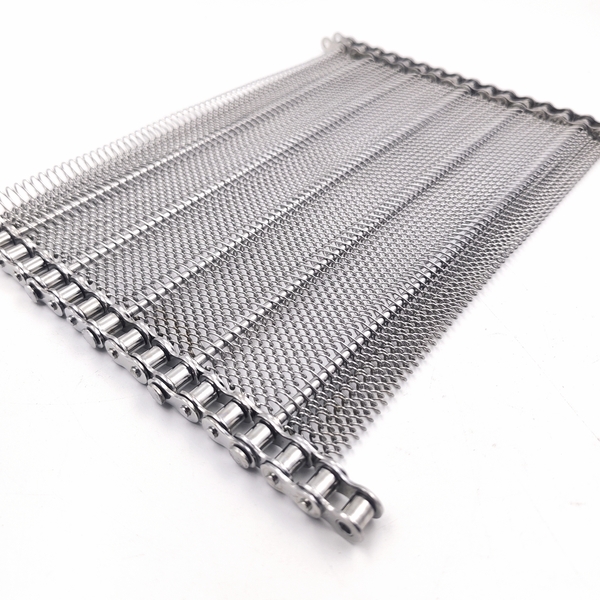

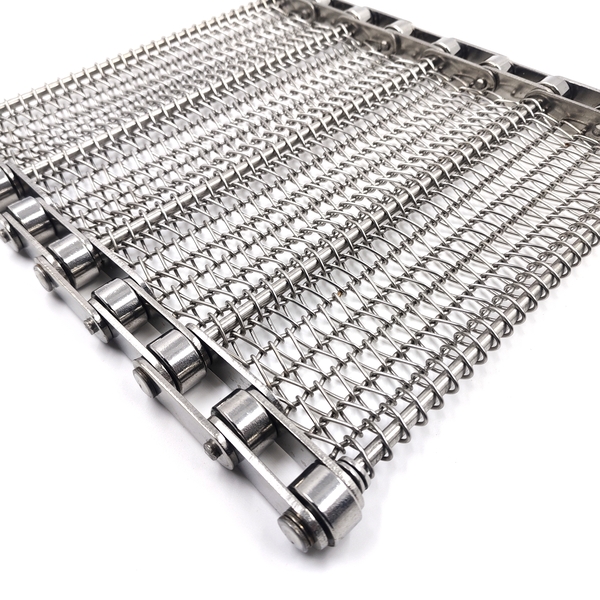

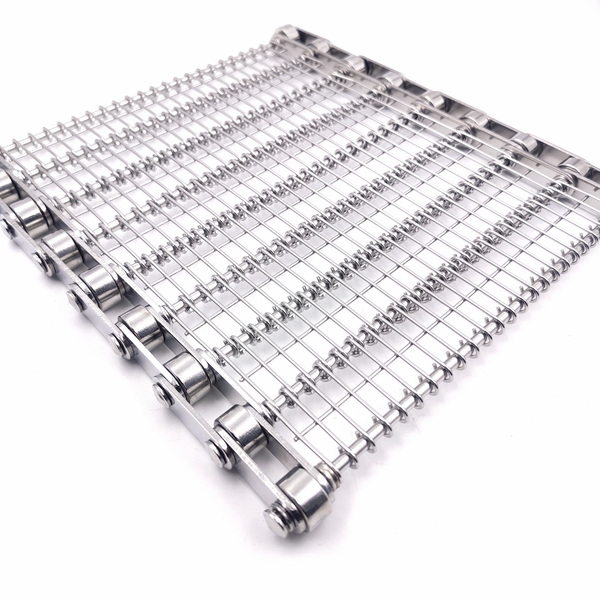

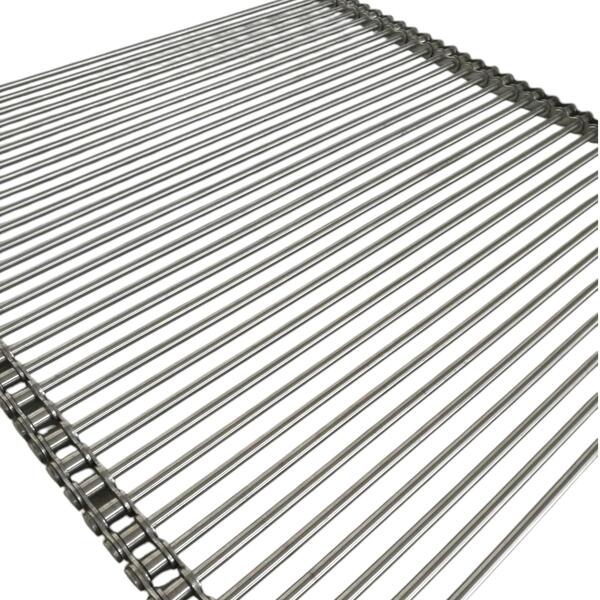

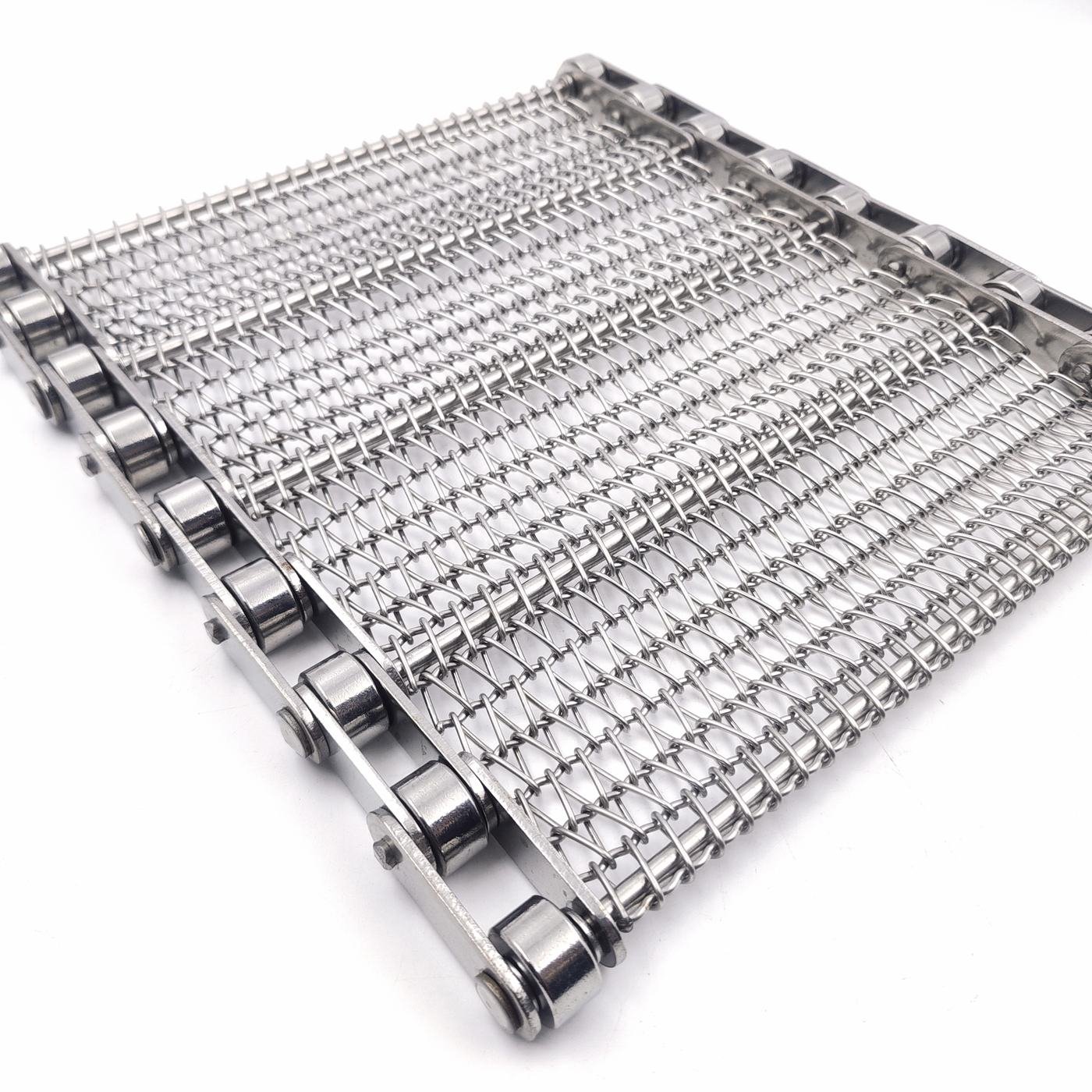

Positive chain edge route for heavier product support and controlled drive engagement.
Confirm: chain pitch / edge alignment / product load
review evidence

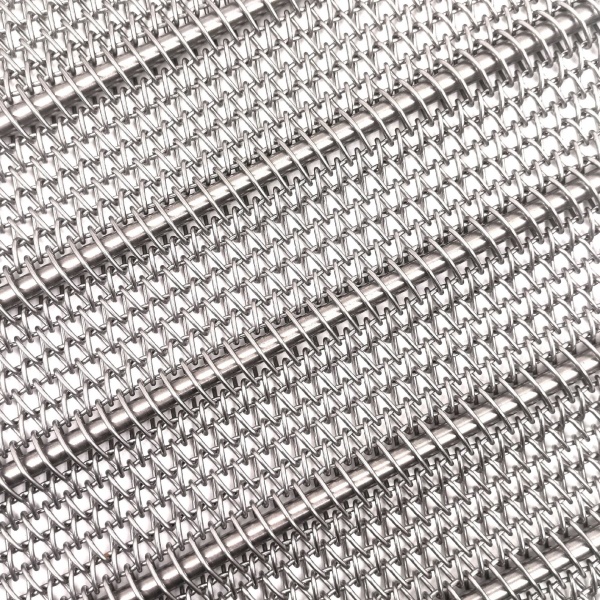

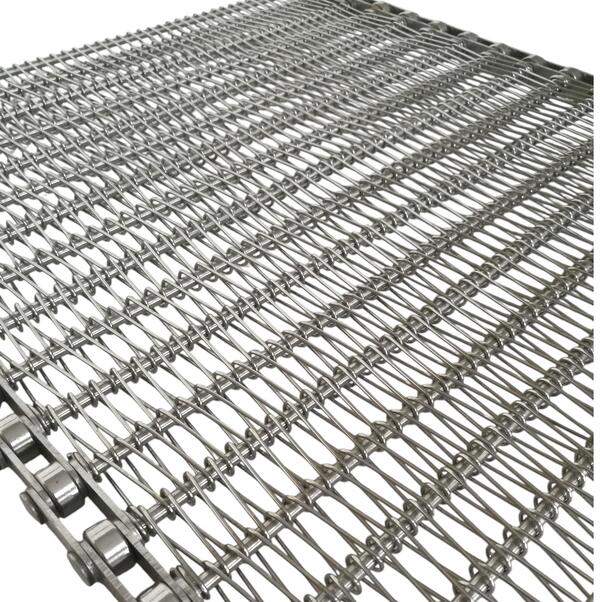

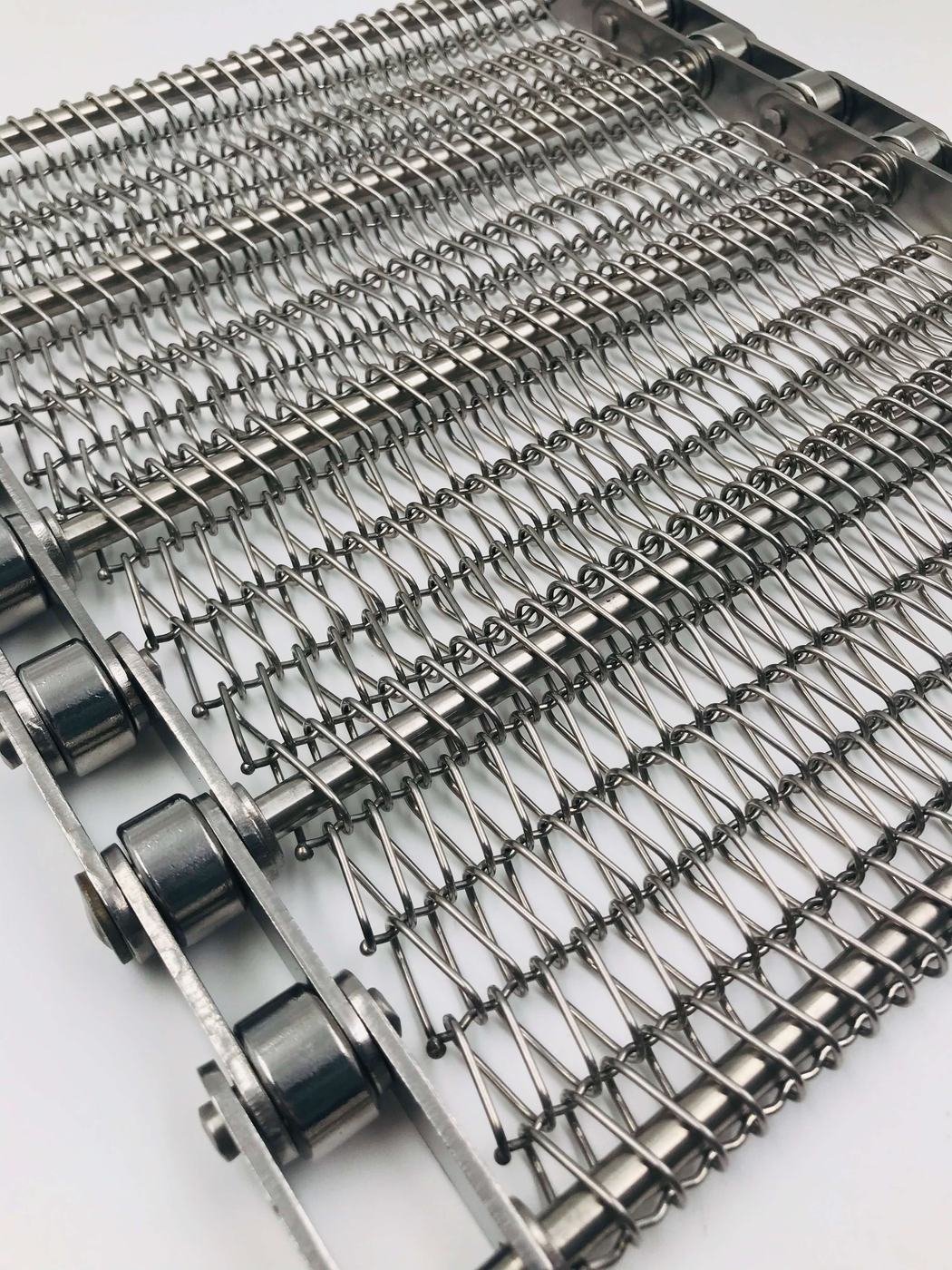

Open metal mesh surface for drainage, washing, cooling, drying, and process transfer lines.
Confirm: open area / rod route / cleaning route
review evidence

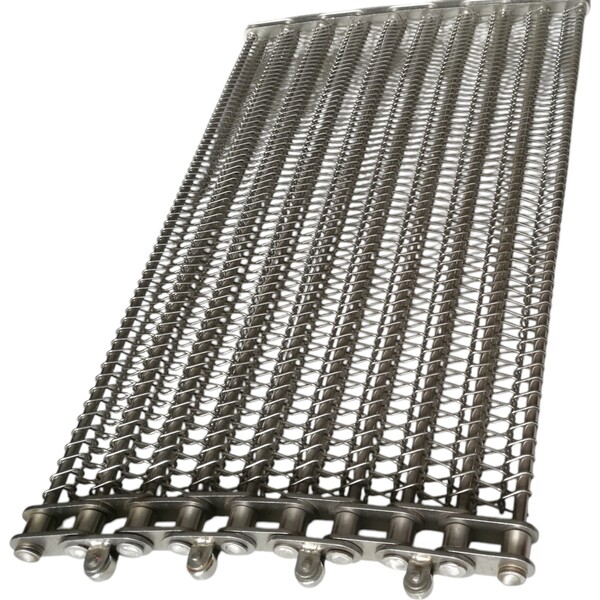

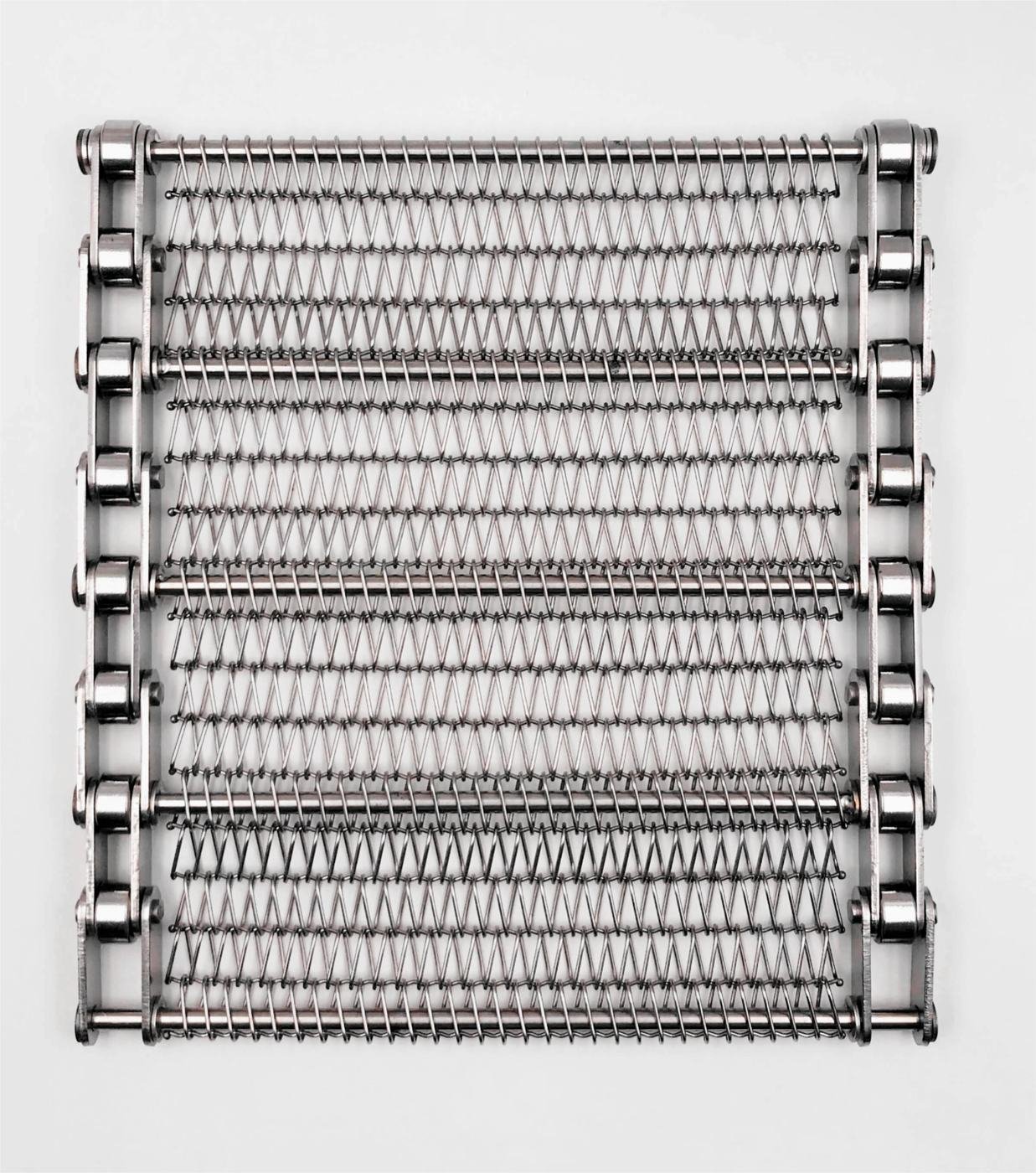

Wide belt sections should be checked for straightness, chain-center distance, and rod-to-edge consistency.
Confirm: total width / chain center / edge line
review evidence

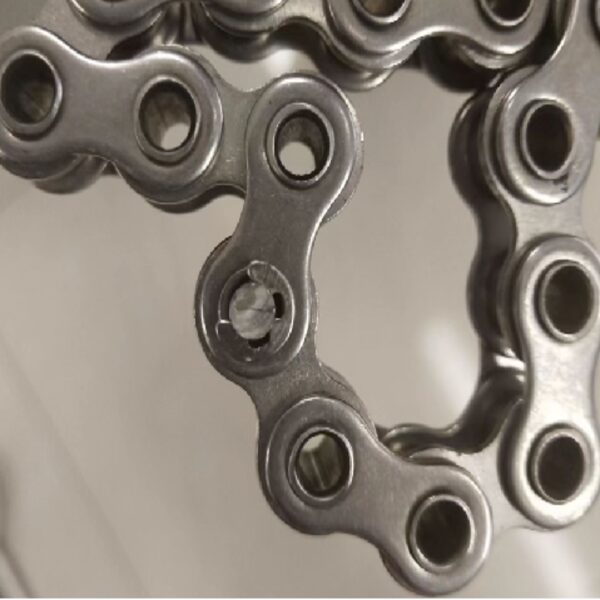

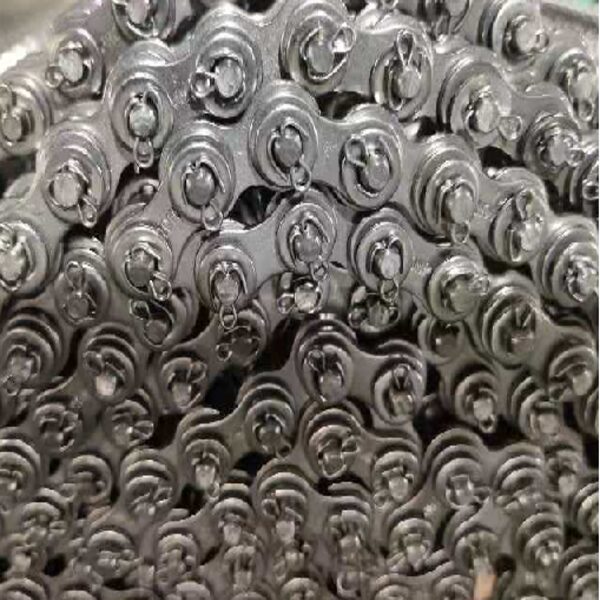

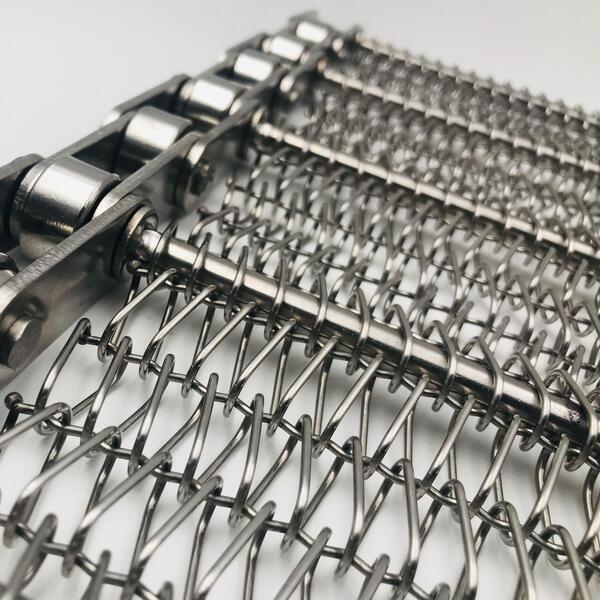

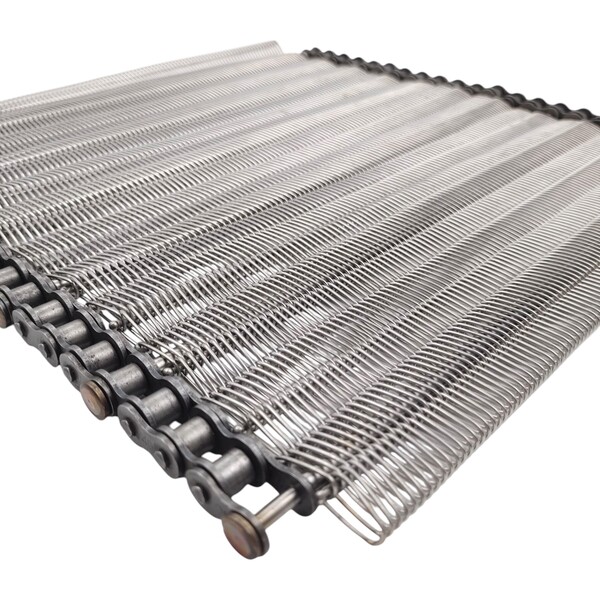

The side chain, cross rod, and mesh connection are reviewed as the running path, not as separate parts.
Confirm: chain link / rod connection / side clearance
review evidence

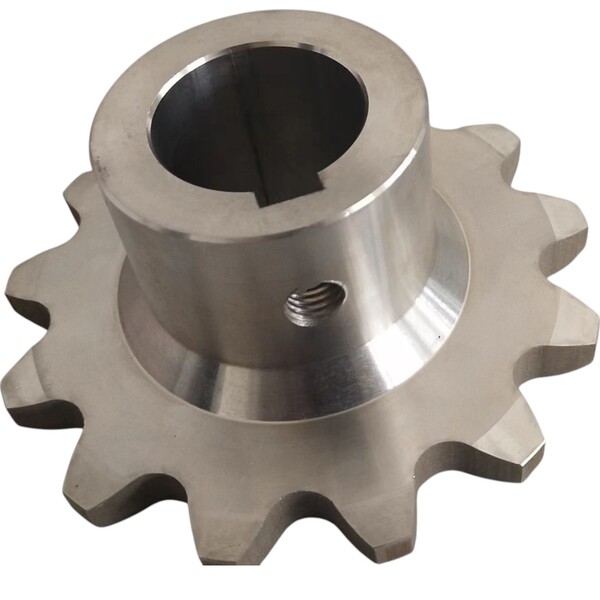

Sprocket profile, tooth count, bore, keyway, and contact path should be checked with the belt pitch.
Confirm: tooth profile / bore / keyway
review evidence
Rod diameter evidence helps buyers confirm load route, chain connection, and replacement fit.
Confirm: rod diameter / load route / release record
review evidence

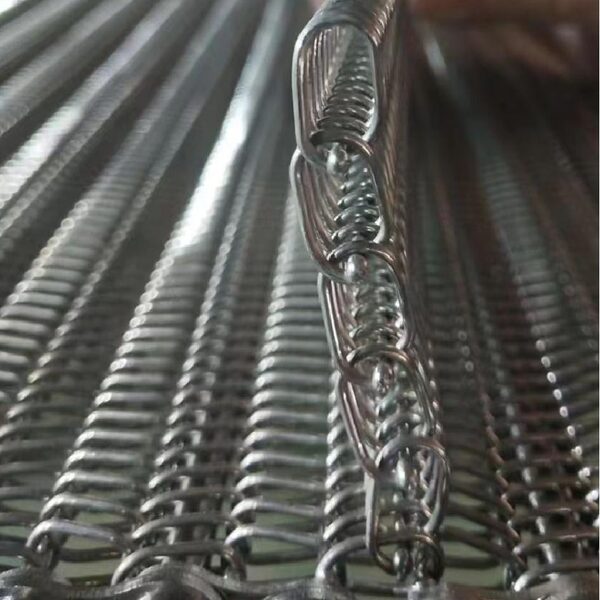

Wire and mesh route are checked against product support, open area, and cleaning requirements.
Confirm: wire diameter / mesh opening / support surface
review evidence
Weld and edge details are reviewed where product contact, cleaning residue, or side contact may create risk.
Confirm: weld finish / burr review / chain plate fit
review evidence

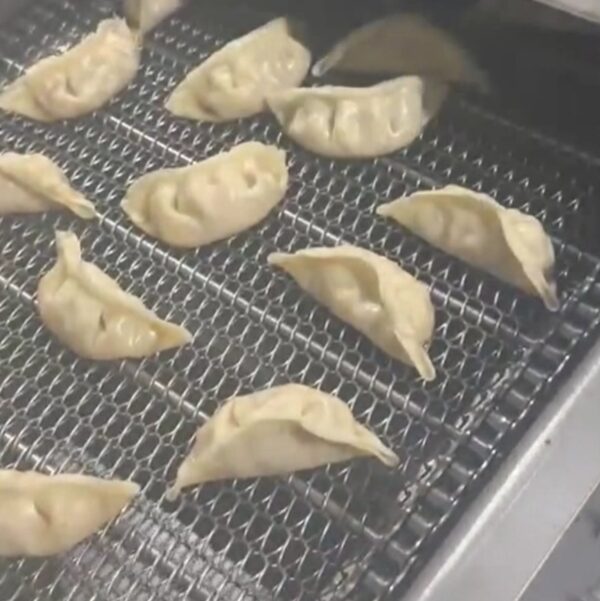

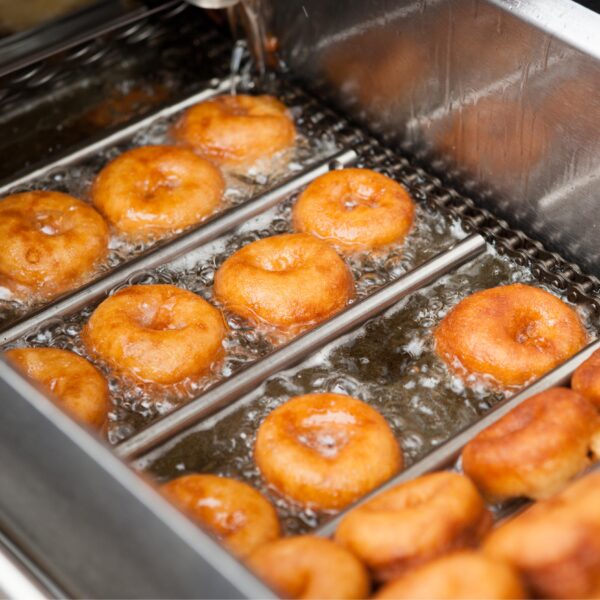

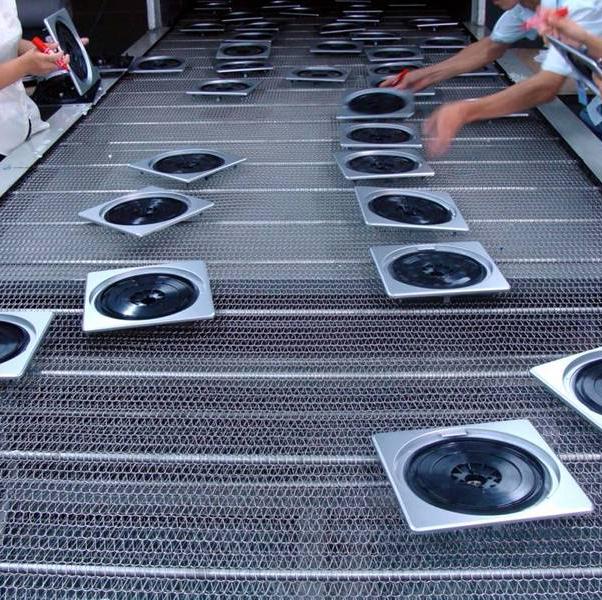

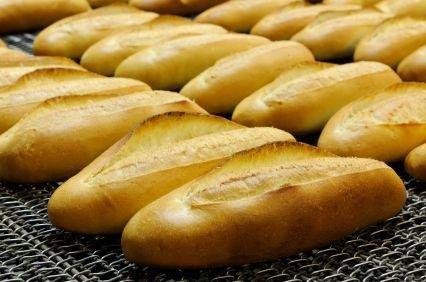

Use application photos to confirm conveyor route, product load, transfer points, and cleaning environment.
Confirm: process route / product behavior / temperature
engineering specification
Chain-driven belts are project-specific. These fields give buyers the correct information path before quotation, production, and release inspection.
Missing some data? Send the drawing, photos, and dimensions you have; JBL Mesh Belt will identify the remaining Chain-Driven Belt review points.
Start Chain-Driven Inquiryverified replacement case
A completed chain-driven belt replacement route built from customer-supplied photos and a sample, then controlled through drawing approval, trial production, bulk inspection, and packing release.
01 / Intake
The buyer supplied belt photos and a physical reference so the replacement route could start without relying on an incomplete legacy description.
02 / Drawing
JBL Mesh Belt converted the reference into a controlled drawing for a SUS304 belt, 2,200 mm wide and 42 m long, including the custom chain and critical center-distance points.
03 / Trial
A trial section was produced first. Chain position, cross-rod route, repeating pitch, center distance, edge alignment, and connection details were checked against the drawing.
04 / Approval
Trial-production photos and video were prepared for buyer confirmation. This approval concerned the manufactured belt geometry; it was not an installed-line performance claim.
05 / Bulk QA
Bulk production followed the approved revision. The release route checked overall width, center distance, chain and rod consistency, edge condition, weld finish, and visible defects.
06 / Release

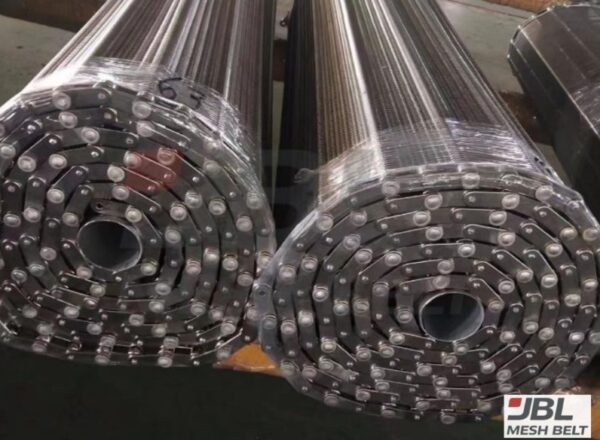

The inspected belt was protected for transport and released with the drawing-controlled project record retained for future replacement review.
inspection reference
An anonymized product-structure view used to show the chain edges, cross rods, carrying surface, and width-control route.
inspection reference

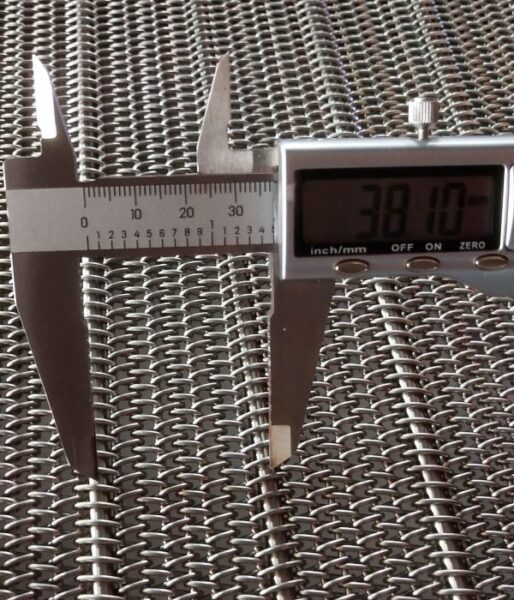

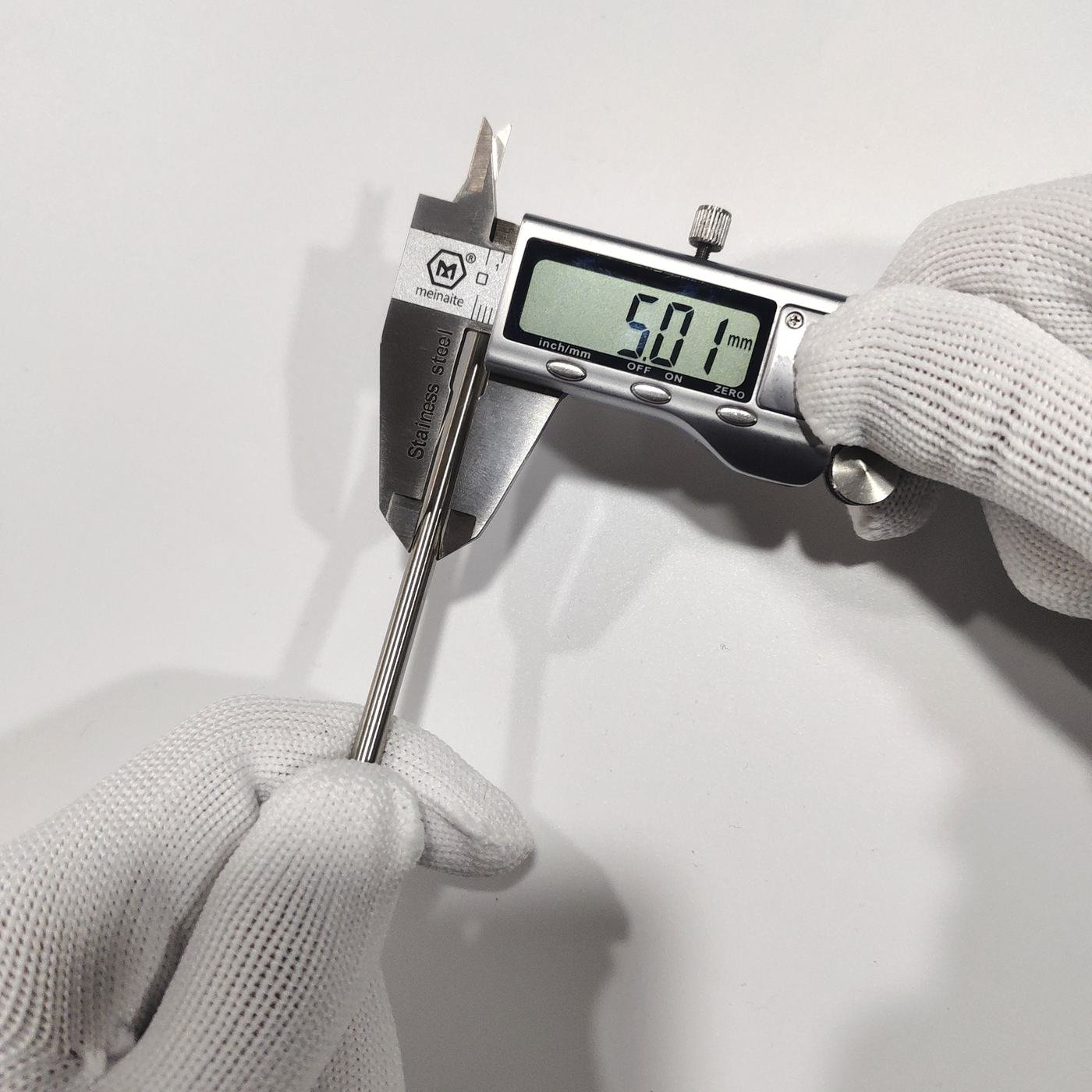

A dimensional inspection reference showing how a drawing-controlled rod value is checked before release.
inspection reference

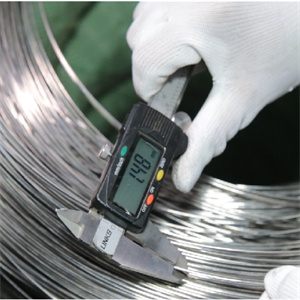

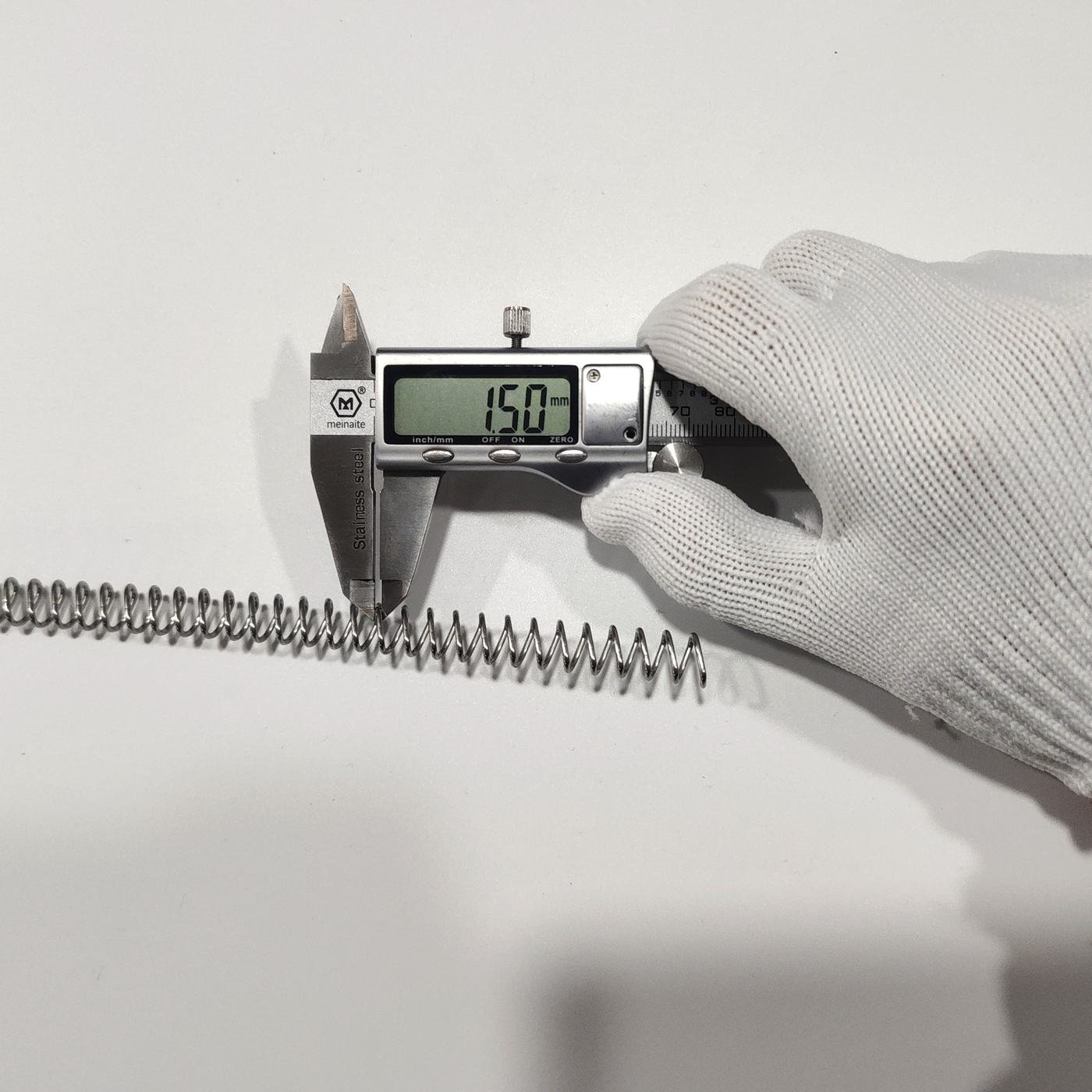

A dimensional inspection reference for the carrying-surface wire. The displayed reading is illustrative and is not presented as the UK project's final value.
Evidence boundary: the published case confirms the documented replacement workflow and approved project dimensions. The displayed still images show product structure and dimensional inspection methods; they are not running-test videos and do not prove installed-line load, speed, tracking, or service life. Buyer approval media remains within the project record.
matched sprockets / drive components
A chain-driven belt can be affected by worn sprockets, wrong tooth profile, wrong bore, wrong keyway, or pitch mismatch. JBL Mesh Belt can review belt pitch, drive engagement, sprocket material, and support components as one route.
Chain pitch and tooth profile are checked together.
Old sprocket wear can shorten new belt service life.

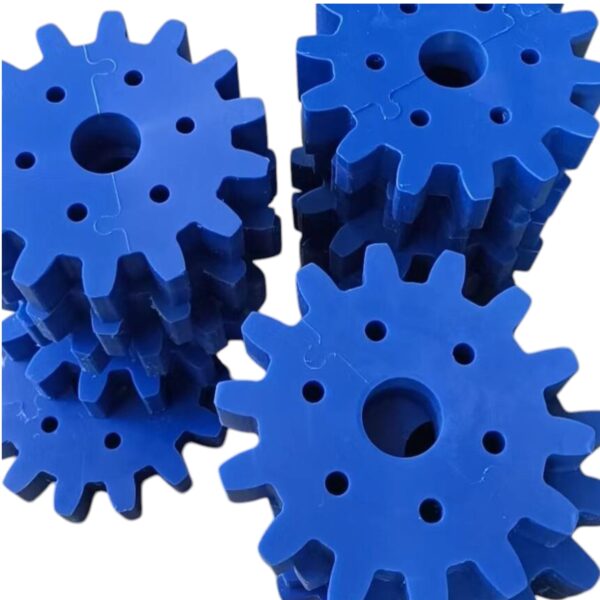

Stainless steel, nylon, plastic, and project-specific sprockets can be reviewed.
Bars, spare rods, chains, and accessories can be packed with the belt.
drive matching
Use sprocket photos and measurements to check pitch engagement, tooth profile, bore, keyway, and contact path.
inspection
Rod diameter and chain connection are reviewed together.
inspection
Wire diameter is checked as part of mesh stiffness and product support.
risk review / replacement logic
Chain-driven replacement projects should make risk visible before production: pitch, sprocket wear, edge route, rod strength, weld finish, and packing protection.
01 checkpoint
Chain pitch and sprocket tooth profile do not match, creating drive shock or early wear.
02 checkpoint
Old sprocket wear can shorten new belt service life if it is not reviewed before replacement.
03 checkpoint
Left-right edge route, chain-center distance, or side clearance can create tracking pressure.
04 checkpoint
Heavy loads, transfer impact, or poor support can distort rod and mesh geometry.
05 checkpoint
Rod end, chain plate, and weld areas need release checks when product contact or cleaning matters.
06 checkpoint
Long-distance shipment needs protected, neutral packing so wide belt sections do not deform in transit.
replacement inputs
The fastest route is not a long message. A few clear photos and key dimensions can start the engineering review.
download / review pack
Use these document types to prepare your project review. Each one is tied to a buyer task: confirming chain pitch, checking sprocket wear, measuring an old belt, or preparing release evidence.
Ask for the current specifications and inspection documents relevant to your project. Confirm the applicable document revision with JBL Mesh Belt before using it for production.
related resources
Buyers reviewing chain-driven belts usually also need help on replacement intake, old-belt photo quality, and pitch or sprocket mismatch before they send final specs.
Resource article
Open article
Resource article
Open article
Resource article
Open article
Chain-driven belt orders require chain pitch, sprocket route, rod end, weld point, product load, cleaning condition, and accessory packing to be checked together.
You do not need a complete specification to start. Send the available drawing, old belt photo, sprocket photo, system photo, or running video first. The JBL Mesh Belt team will reply with the missing review points.
These SOP points are converted from JBL Mesh Belt order-control, QC, packing, and delivery documents into buyer-facing checkpoints.
Chain pitch, sprocket tooth count, tooth profile, bore, keyway, shaft notes, conveyor width, and old sprocket wear are reviewed before quotation.
Rod diameter, wire diameter, strip route, edge construction, weld position, and product-contact areas are matched to load and process conditions.
Overlap weld, missing weld, false weld, sharp protrusion, twisted strip, and unclean weld areas are converted into pre-shipment inspection points.
Spare rods, pins, sprockets, bars, bubble wrap, waterproof film, export plywood case, weight, and volume can be recorded before shipment.
Chain-driven bad-quality documents are best used as anonymous corrective-review examples: they should help buyers send chain, sprocket, and weld-area photos earlier.
Before a chain-driven belt is packed, it is measured against your drawing and every weld is inspected.
Pitch is measured across several pitches and averaged. Overall width is measured at several positions against the tolerance on your drawing.
Every weld is inspected before shipment: no bridged, missed or cold welds.
Belt edges are checked for burn marks and deformation. The chain is checked along its full length.

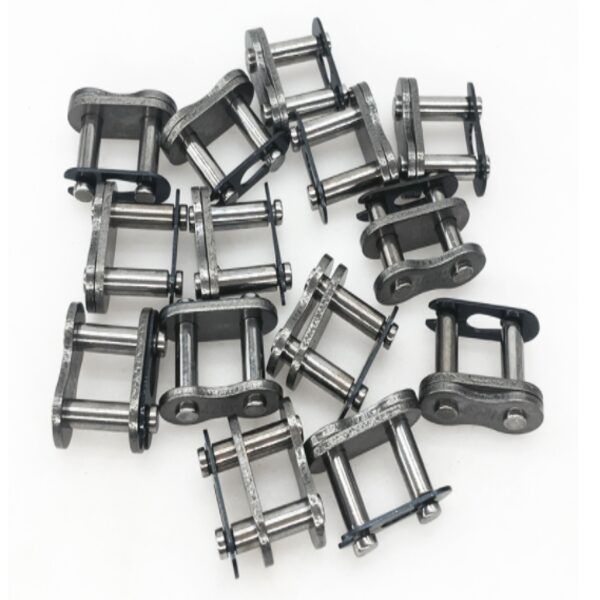

Connecting links and other accessories are counted against the order and photographed.
chain driven belt inquiry
Old belt photos, chain pitch, rod diameter, wire diameter, sprocket photos, tooth count, bore, keyway, and load conditions are enough to start the review.
chain driven belt faq
FAQ 01
Send the product load, process, conveyor path, transfer points and reason positive drive is required. JBL Mesh Belt reviews the carrying surface, chain edge and load route; the final selection follows the project review and confirmed drawing.
FAQ 02
Share any known belt width, chain model and pitch, chain-center distance, rod diameter and spacing, wire or mesh data, material, load and temperature. JBL Mesh Belt checks the dimensional route as a system, and final values follow the confirmed drawing or sample review.
FAQ 03
Provide sprocket photos, tooth count, profile, bore, keyway, shaft position, chain pitch and visible wear. JBL Mesh Belt reviews chain pitch, rod position and sprocket contact together before confirming the drive interface.
FAQ 04
Send full-belt, chain-edge, rod-connection, damaged-area and installed-line photos, measured dimensions and a sample when available. JBL Mesh Belt compares the old belt and drive components, then records the agreed replacement route in the confirmed project drawing.
FAQ 05
Share shaft and guide alignment, chain-center position, support and transfer clearances, joining method, washdown and drying conditions. JBL Mesh Belt reviews tracking, side contact and cleanability; installation and cleaning details follow the confirmed project configuration.
FAQ 06
Send the application, load and speed, available belt and chain dimensions, sprocket and shaft data, material and cleaning conditions, quantity, delivery target and required records. JBL Mesh Belt identifies missing points and quotes against the confirmed project scope.
All listed dimensions and configuration options can be customized for the project, subject to engineering review and the confirmed drawing.

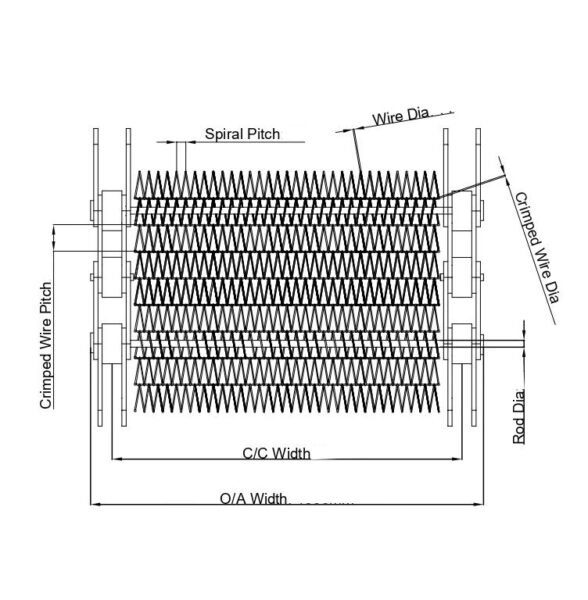

Reference specifications
| Parameter | Reference options |
|---|---|
| Material | SUS304 / SUS316 / carbon steel |
| Spiral pitch | 3–20 mm |
| Crimped wire pitch | 4–20 mm |
| Spiral / crimped wire diameter | 1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / 2.5 / 3 mm |
| Cross rod diameter | 4 / 5 / 6 / 8 / 9 / 10 / 12 mm |
| Cross rod pitch | Project-specific multiples of the chain pitch |
| Chain pitch | 12.7 / 15.875 / 25.4 / 31.75 / 38.1 / 50.8 / 63.5 mm |
| Chain model | #40 / #50 / C2042 / C2052 / C2062 / C2082 / C2102 solid roller chain; hollow chain (custom) |
| Belt width | 300–5000 mm (11.81–196.85 in); custom |
| Belt length | Custom, specified in m or ft |
| Rod-end connection | Welded washers / cotter pins |

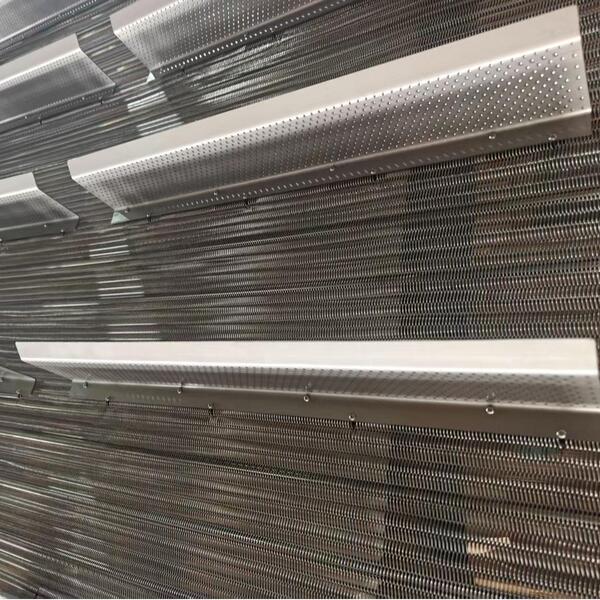

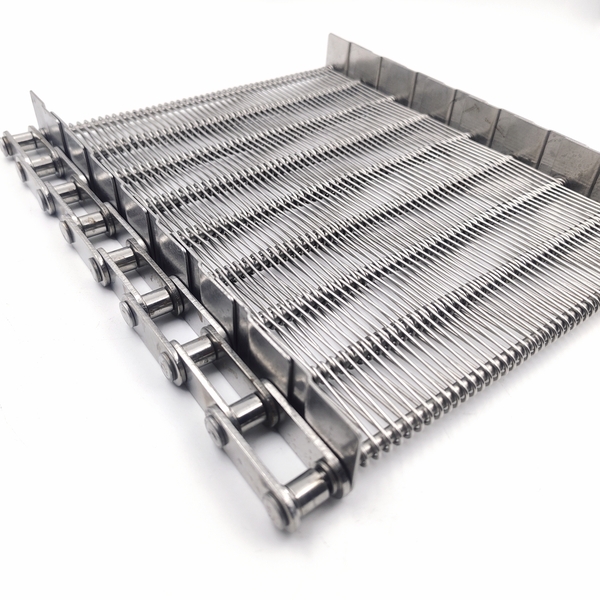

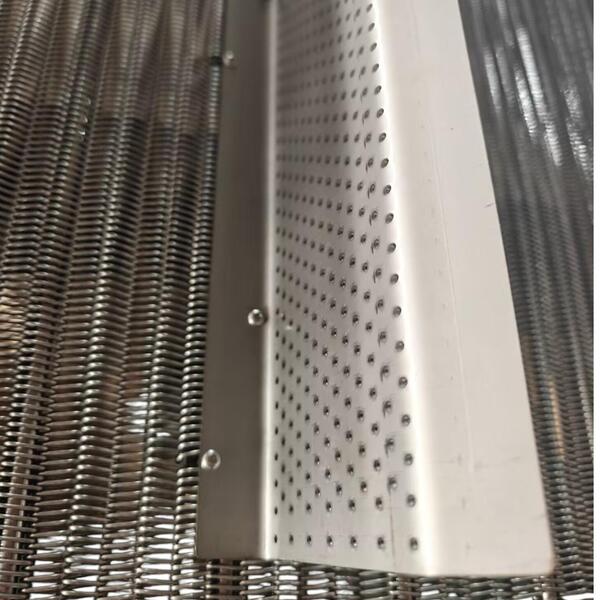

| Accessories | Side guide / tube / side roller / square bar / flights / side plate (optional) |
Reference options from the 2026-10-02 public specification, pages 2 and 5. Plate height and width measurement points are confirmed per drawing. Final dimensions and combinations follow the confirmed project drawing. Source: Chain-Driven Belt Technical Specification, page 5 ↗
Read the documents for this belt
Chain-Driven Belt: specification and production & quality control process, page by page
Opens in a new tab · no download · no sign-up
Document Library
Compare pitch, wire, edge, surface and sprocket options with your equipment before you send a drawing or old-belt photos. 13 technical specifications and 11 production and quality control documents for JBL metal conveyor belts and sprockets, page by page on your phone or computer.
Engineering review
Not sure which specification fits your line?
Send your drawing or old-belt photos on WhatsApp. We compare them with the specification and tell you what still needs to be measured.
