Sample structure review

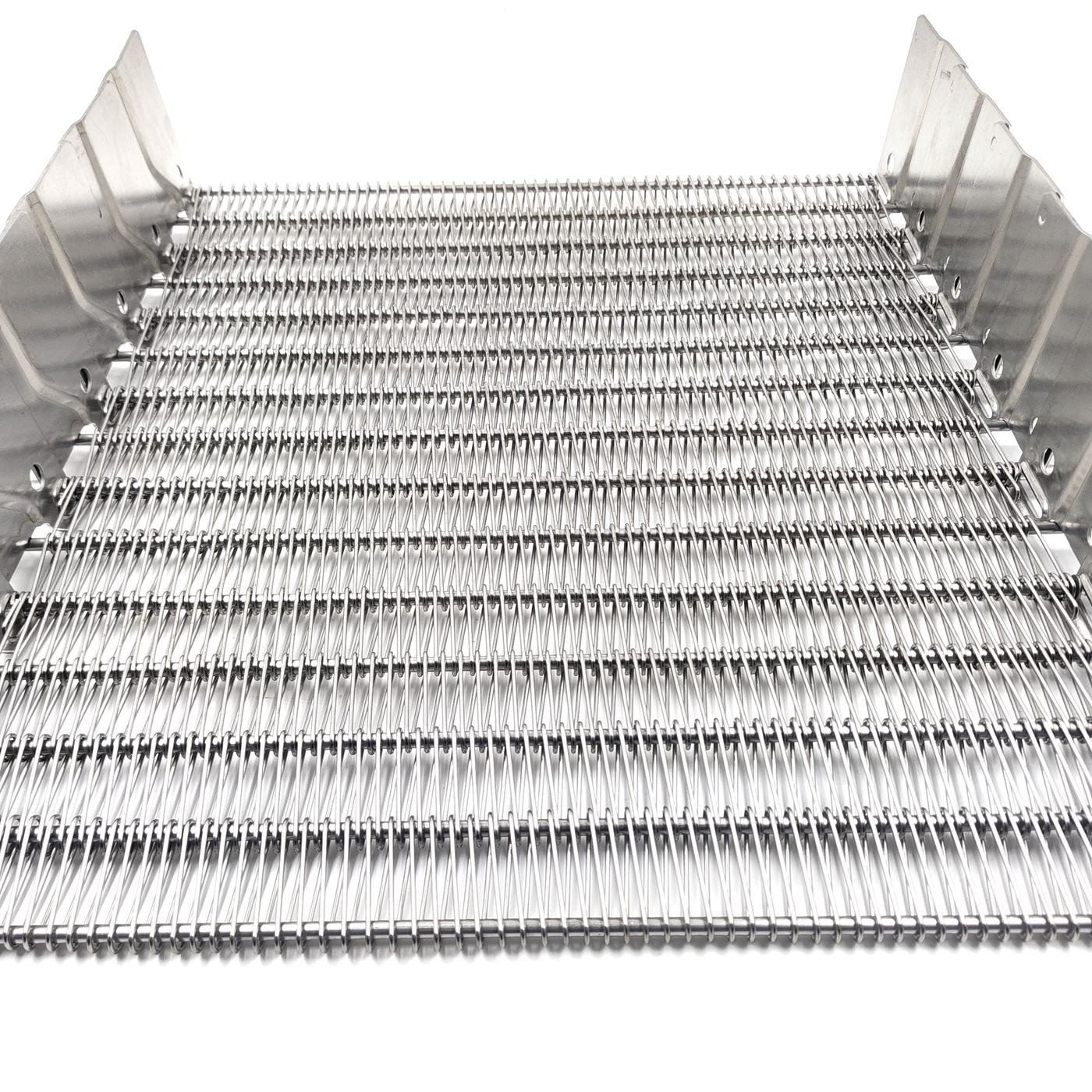

A physical sample can show visible side plate, pitch, rod, mesh, edge, and assembly details.
After drawings and key specifications are confirmed, JBL Mesh Belt can prepare material and produce a trial sample or small-batch sample for approval. Customized mass production starts only after the buyer-approved reference is clear.
Trial samples and comparison photos can document selected structure and measurement checkpoints before production. They do not by themselves confirm installed application performance.
A physical sample can show visible side plate, pitch, rod, mesh, edge, and assembly details.

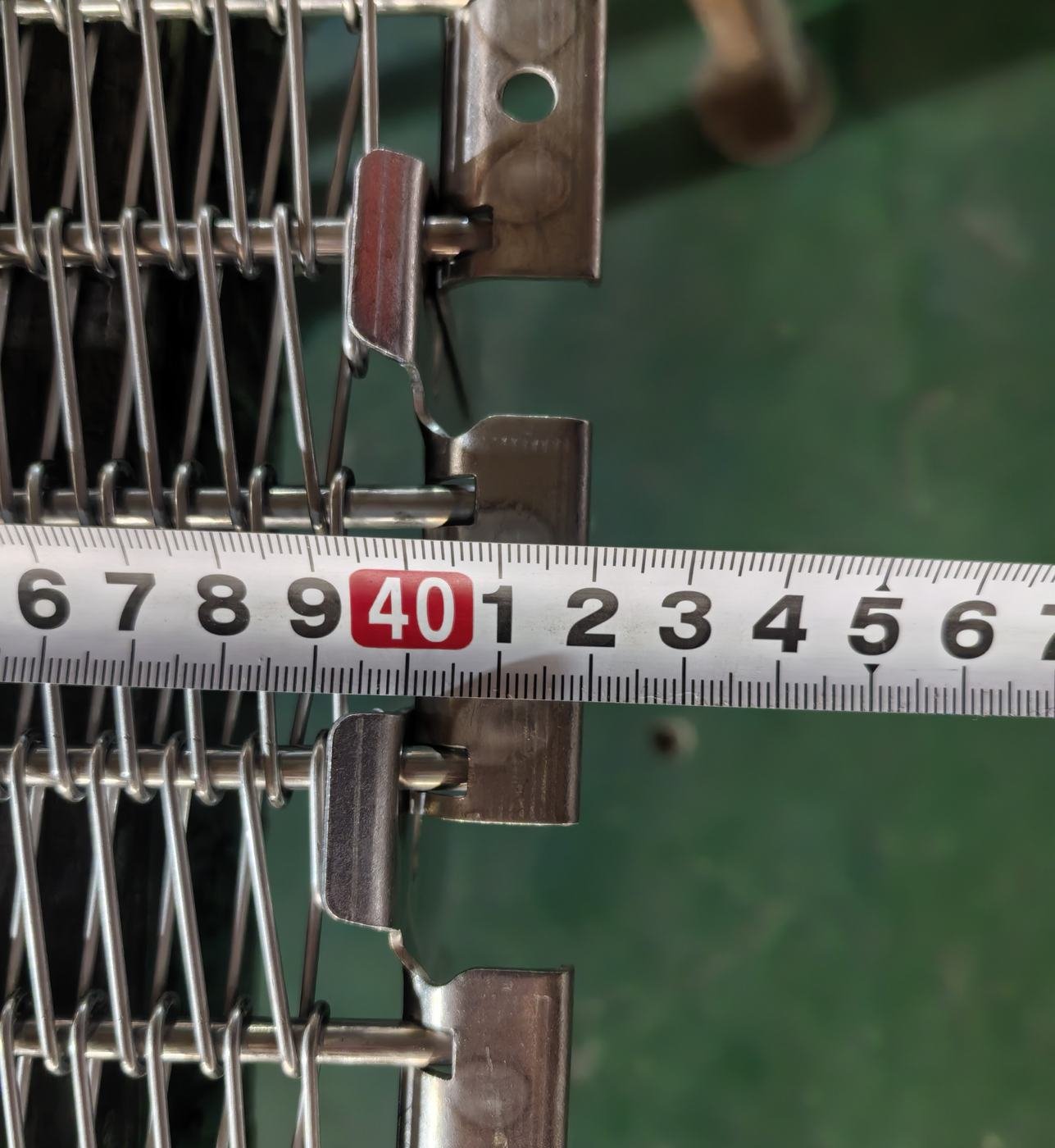

Measurement photos support approval for the photographed checkpoints and stated method.

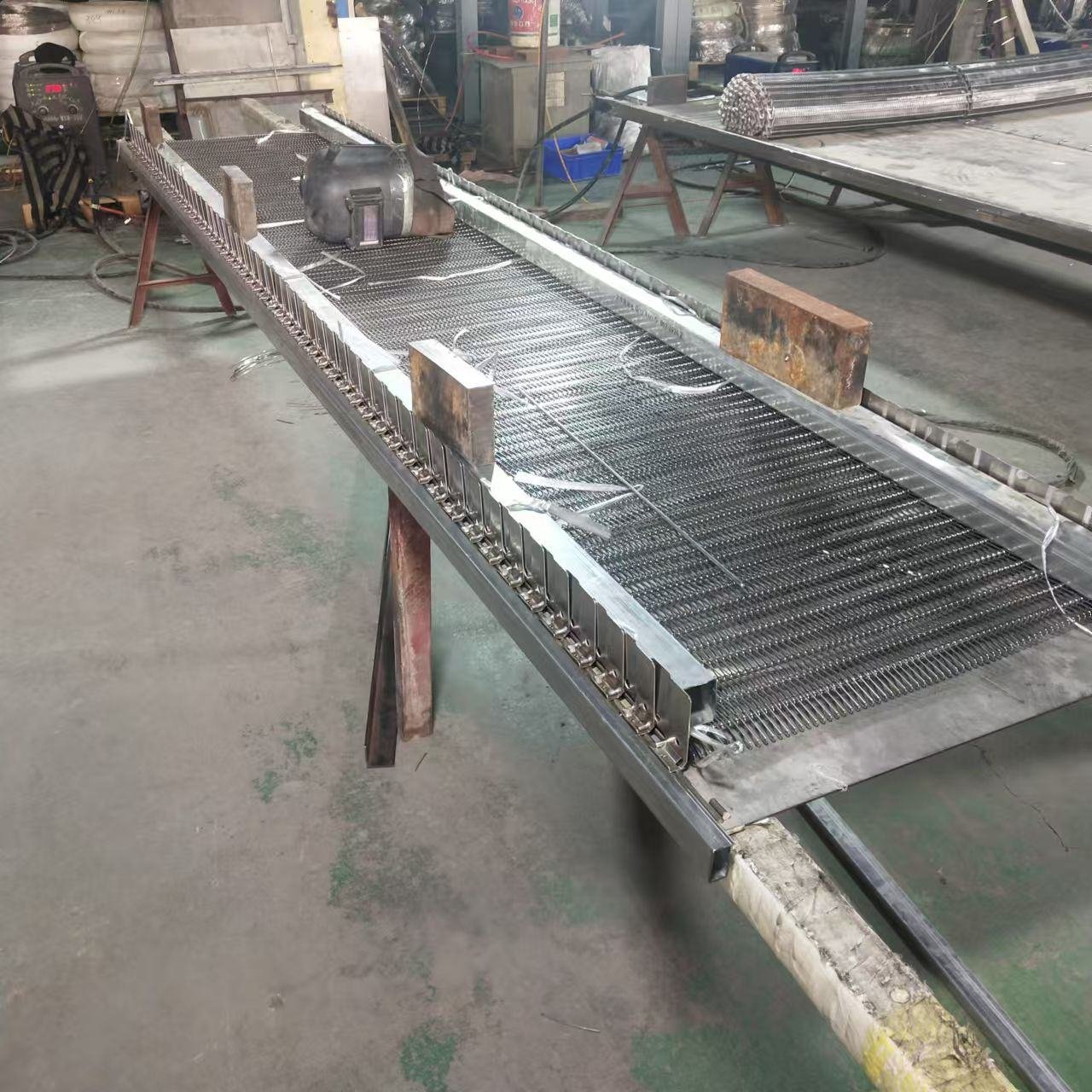

Welding and assembly photos document visible details; acceptance criteria must come from the agreed reference.
Evidence scope: Photos and records establish only the visible product, measurement, inspection, test, or packing step shown. They do not by themselves confirm installed performance or interchangeability. Final release follows the confirmed drawing, operating data, drive interface, and agreed validation scope.
The approval method depends on project risk, buyer process, and whether an original belt sample is available. In both routes, the purpose is the same: confirm the reference before custom mass production.
After drawing confirmation and material preparation, JBL Mesh Belt produces a trial sample and sends the physical sample to the buyer for review and approval.
When the buyer has an original sample and this route is agreed, the produced sample can be compared by selected dimensions and structural checkpoints, with photos or records prepared for approval.
The checklist is adjusted to the product and project risk. Items that do not apply can be marked accordingly; missing critical items remain open rather than being treated as approved.
A sample can approve the dimensions, construction, workmanship, and comparison points listed in the agreed checklist. It does not by itself approve installed tracking, long-duration wear, thermal cycling, sanitation results, operating load, line speed, or complete conveyor-system performance. Those outcomes require separate installed or operating evidence under recorded conditions.
If your project may need trial-sample approval, include that intent early with the drawings, buyer sample, and application notes. That helps JBL Mesh Belt decide whether to send a physical sample or prepare a documented comparison record before mass production.
