Explore 12 metal conveyor belt families and matched sprockets for spiral freezing and cooling, IQF tunnel freezing, baking, proofing, frying, drying, washing and packaging equipment. Start with the belt type, equipment application or an existing-belt photo. Final configuration follows technical review of confirmed project data.
For OEM equipment builders, food processors, replacement teams, distributors and repeat-supply projects.
Start with the belt, equipment or project information you already have.
TM Applications
Choose the equipment that matches your line. The page will highlight belt families commonly reviewed for that application. This is an initial route; the final belt and sprocket configuration follows confirmed equipment and project data.
Suggested starting points for review. Final configuration follows confirmed equipment and process data.
Product Range
The range includes spiral and turn-curve applications, straight-running industrial conveyor belts, special belt structures and matched drive components. Begin with the closest structure; final selection follows review of the equipment, process and drive interface.
TMReviewed for spiral freezing and cooling systems where belt path, inside-turn conditions, support arrangement and drive interface must work together.
Review drum or cage information, belt width, running direction and existing-system details.

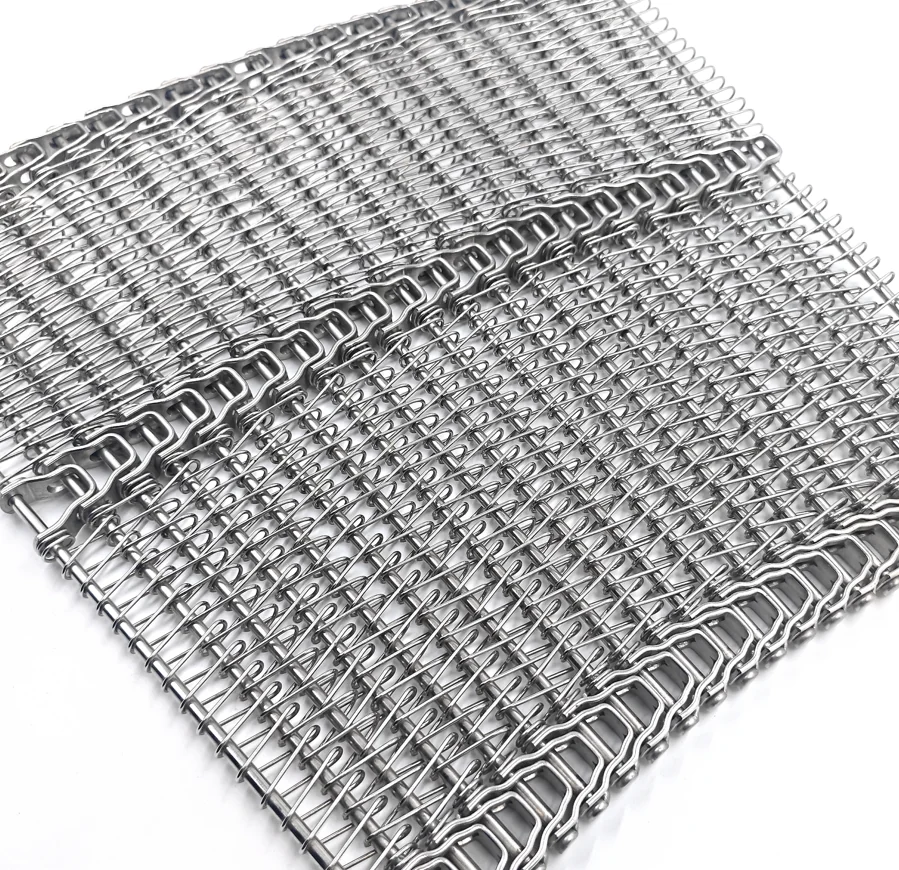

TMFor equipment layouts designed around a reduced inside turning radius. Confirm the spiral geometry, belt width, edge structure and drive relationship before selection.
Review turning geometry, usable belt width, pitch configuration and equipment clearances.

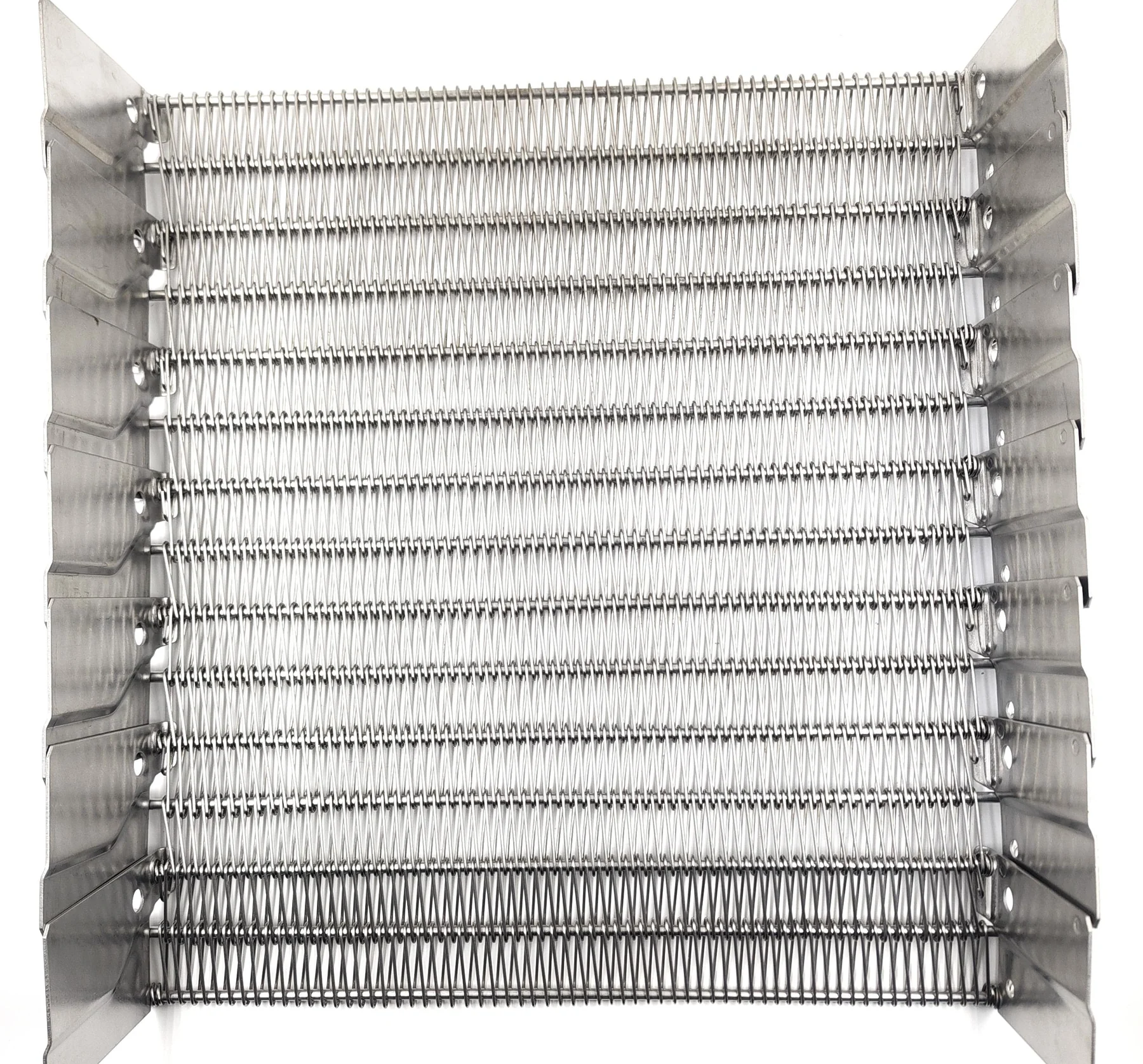

TMFor self-stacking spiral systems where the belt side structure forms and supports each tier. Review stacking geometry, side plates, product path and drive conditions.
Review stacking engagement, clearances, running direction and critical replacement dimensions.

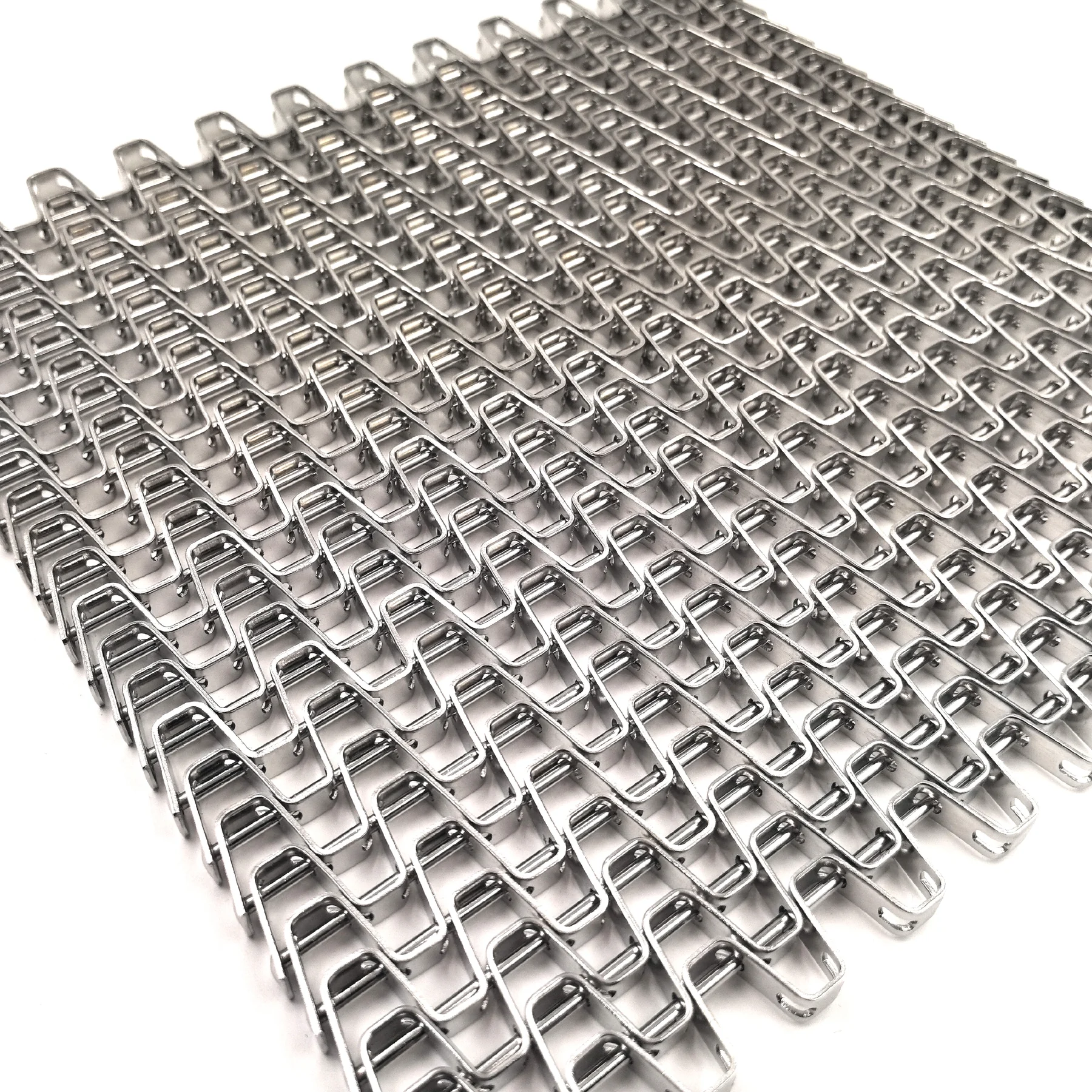

TMA metal conveyor belt with a flat, stable conveying surface and an open construction for airflow and liquid drainage. Configuration is reviewed around the product, process and conveyor interface.
Reviewed for cooling, drying, freezing, washing and thermal-processing projects. Final selection depends on confirmed belt width and length, pitch, cross rods, side or chain finishing and sprocket or roller drive details.
TMAn open-grid, straight-running belt family reviewed for can washers, beverage-can and container handling, baking, cooling, drying and transfer lines.
Confirm drainage and spray-open-area needs, pitch, opening, edge style, transfer stability, support and drive interface from the project data.
Continue by product structure, or return to the application selector above if the belt name is uncertain.

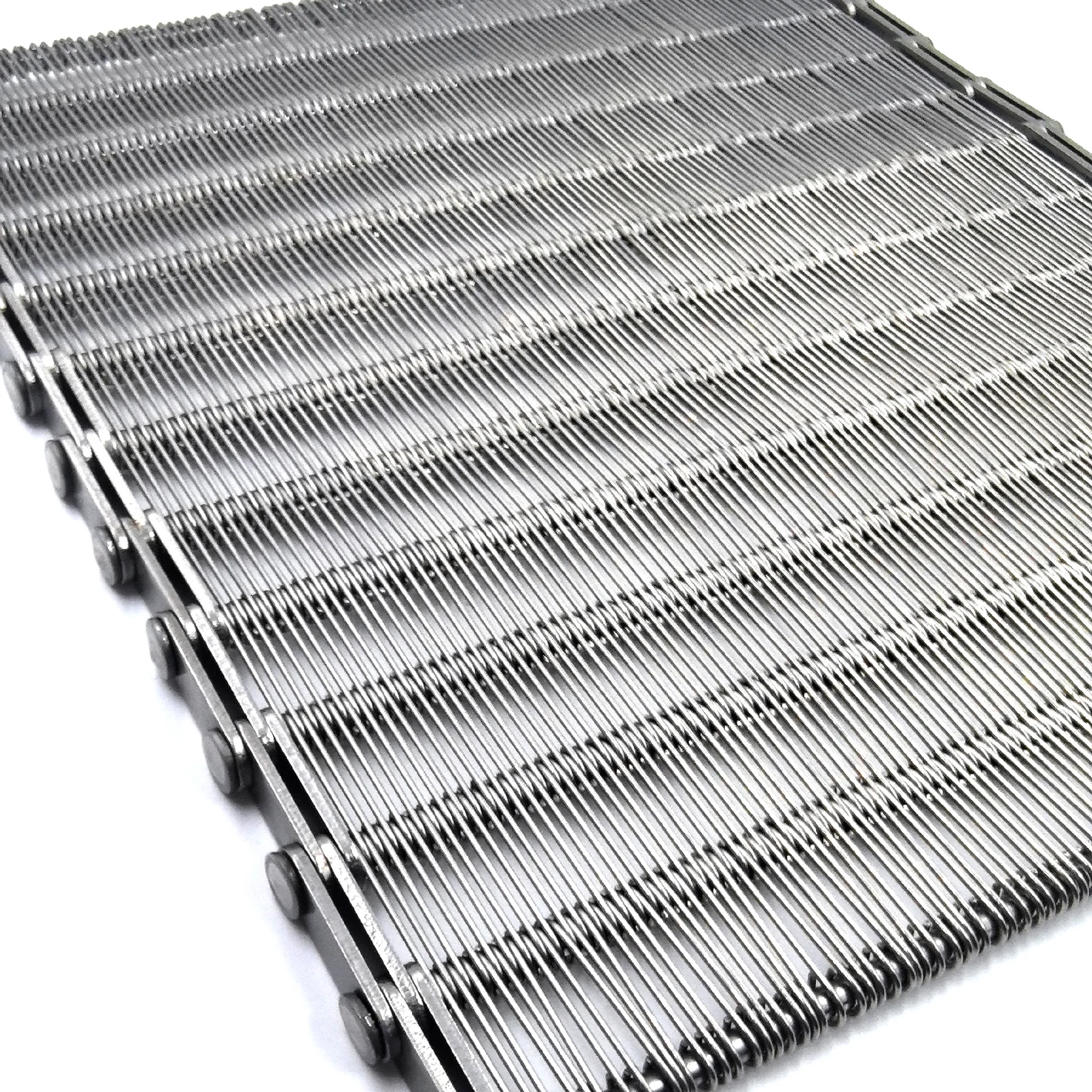

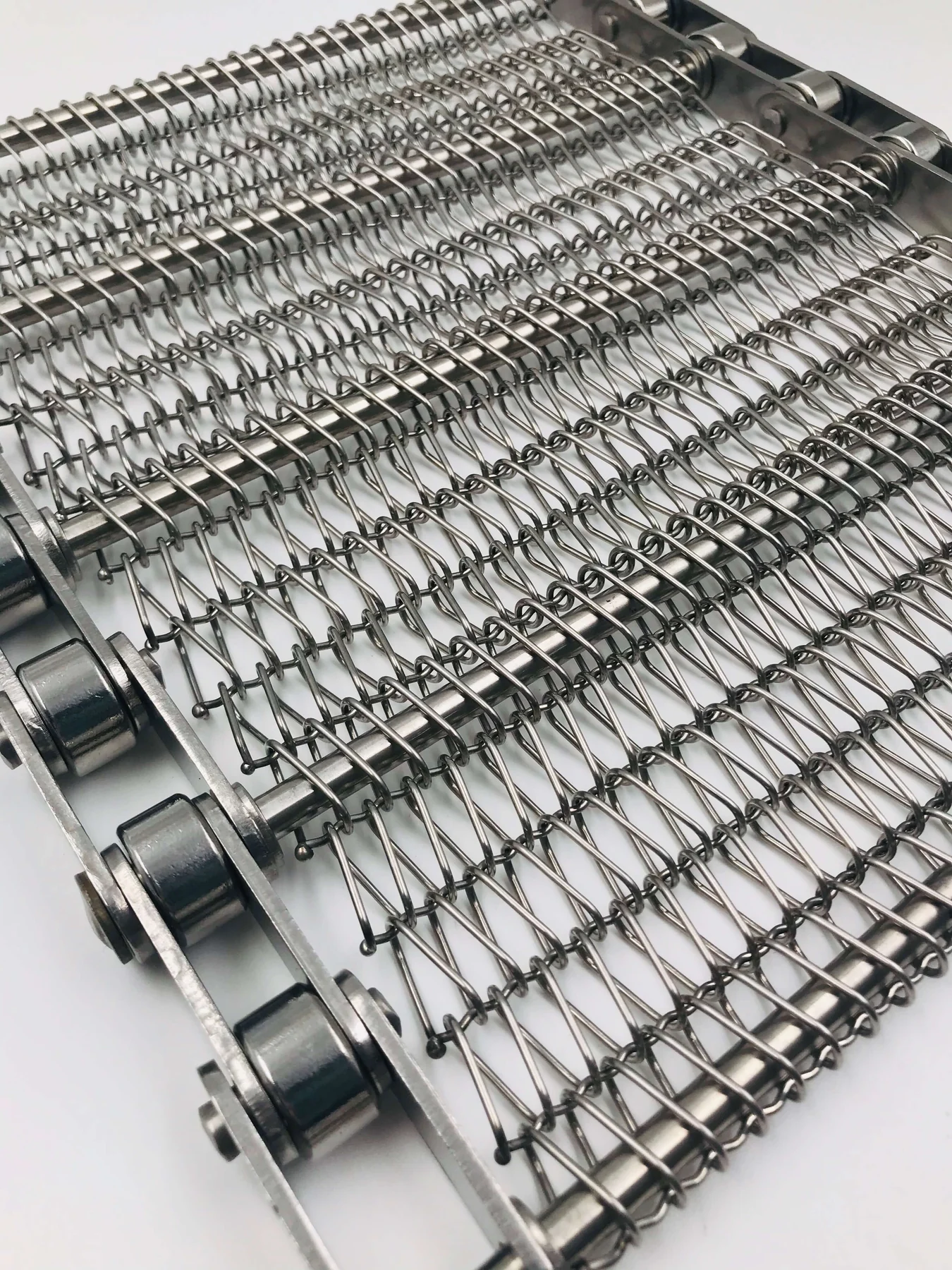

TMFor conveyor systems that use side chains for positive drive. Match chain specification, cross-rod connection, sprockets, supports and operating conditions.

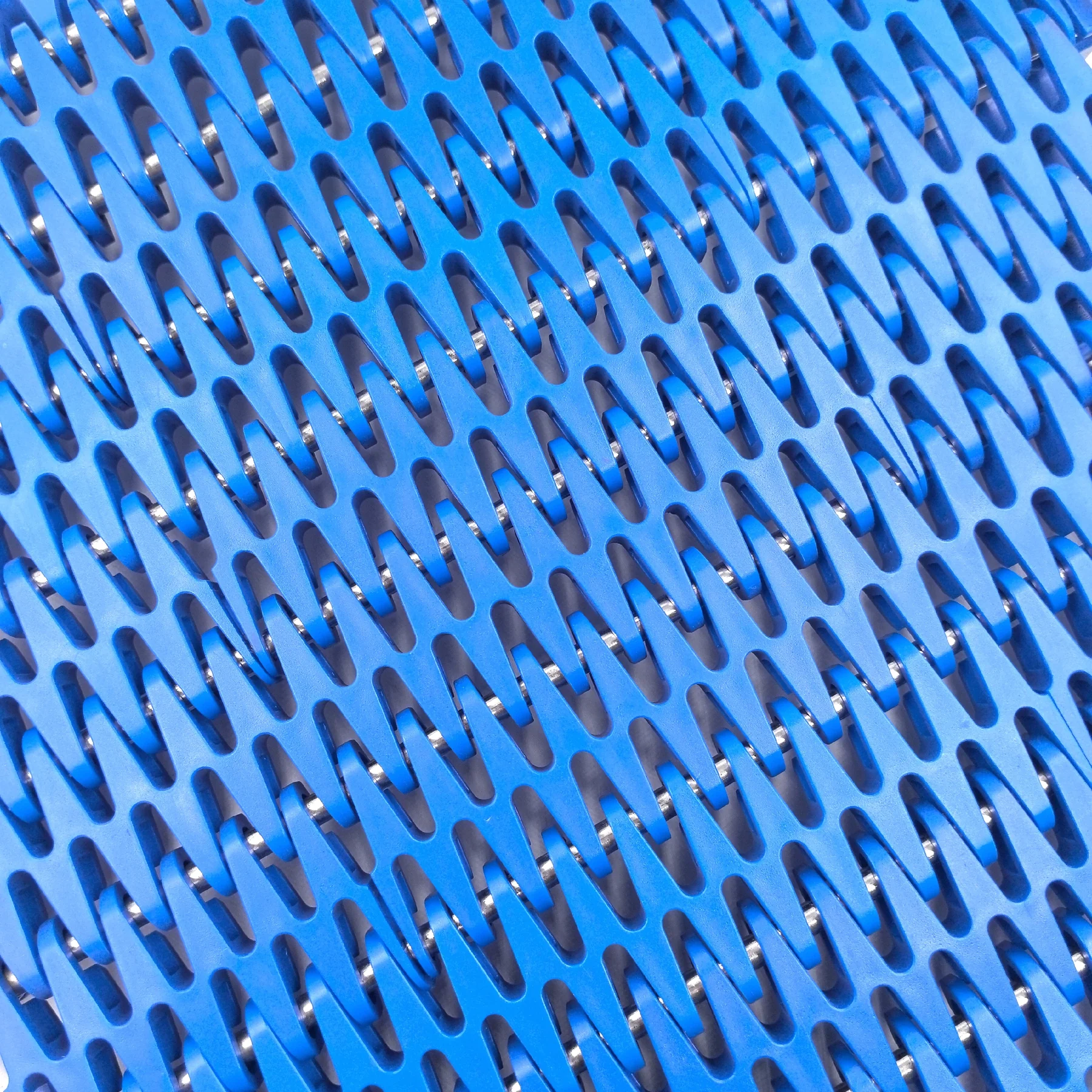

TMFor equipment that transfers drive through the belt edge or side interface. Confirm edge design, engagement geometry, turning path and available drive details.

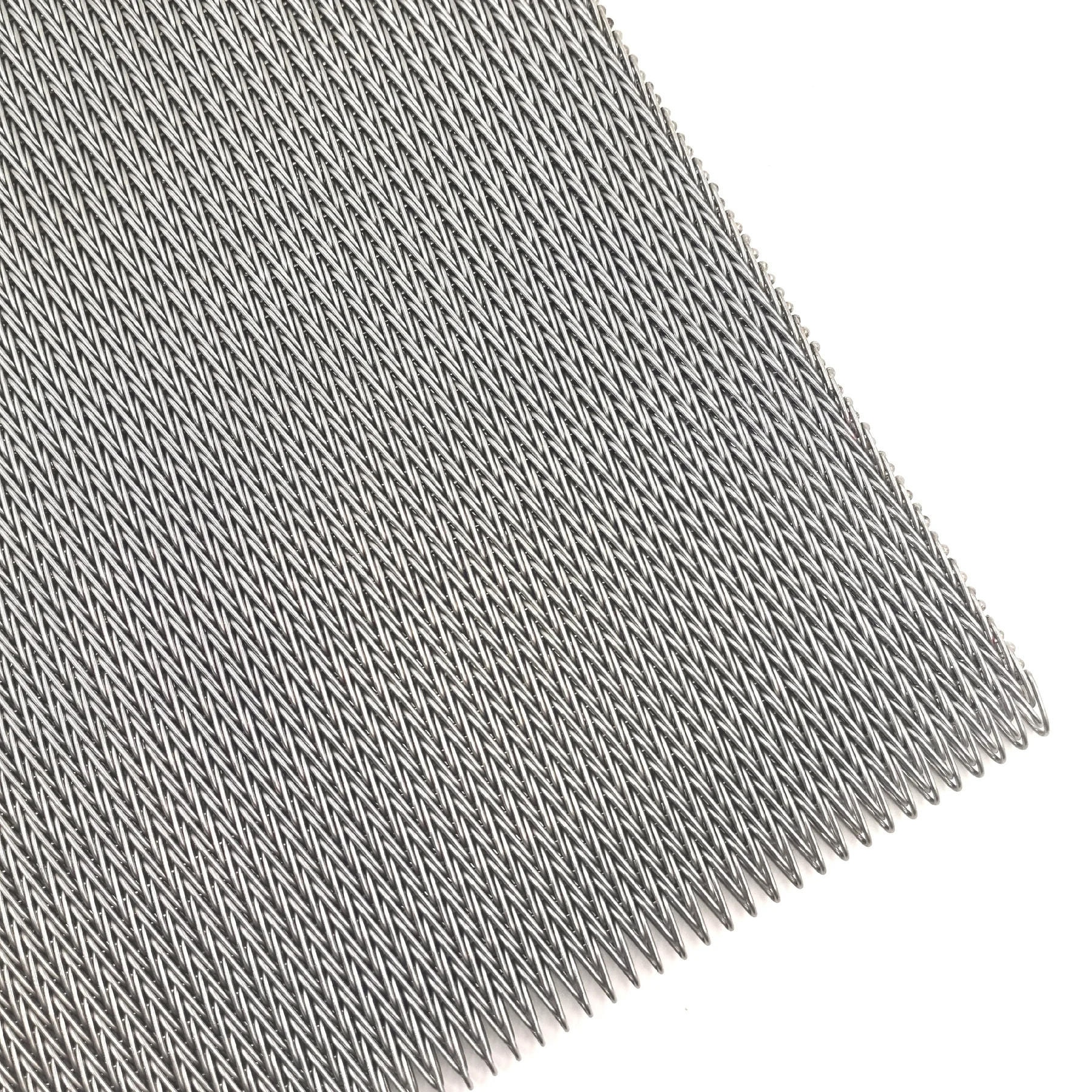

TMA woven wire belt family for continuous processing and conveying. Select mesh, wire, edge finish, product support and tracking conditions from confirmed line data.
TMA close-mesh woven structure considered when smaller products or a denser support surface is required. Review product size, transfer, airflow or drainage, cleaning and drive conditions.
TMFor biscuit and bakery conveyor sections where product support, release and transfer alignment matter. Confirm oven layout, product dimensions, belt path and edge construction.
TMAn open ladder-style structure, also searched as trapezoidal mesh belt, reviewed where spaced cross rods and controlled product support are needed. Confirm pitch, rod layout, edge design and transfer points.

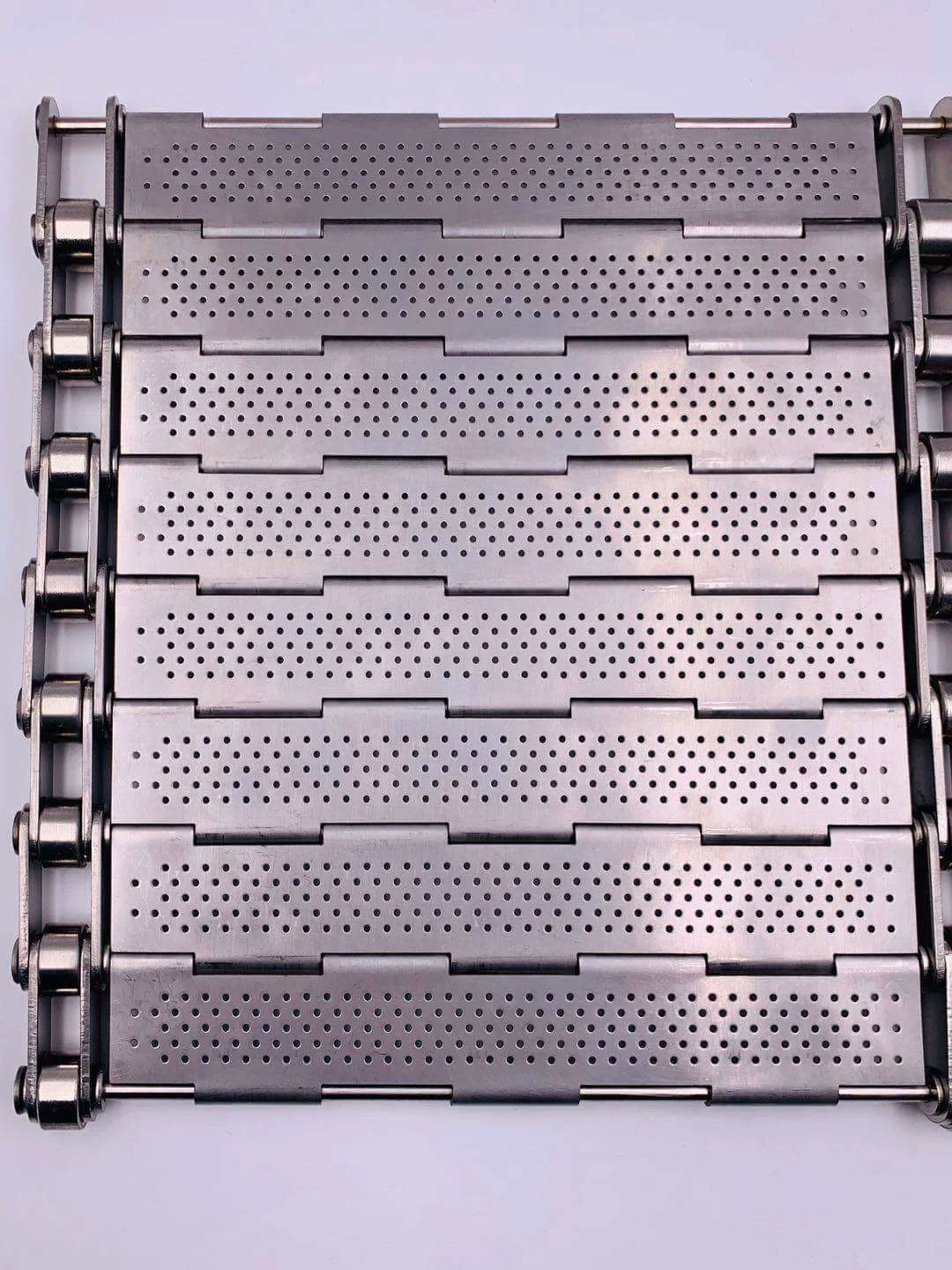

TMA linked plate structure for conveying lines that require a defined supporting surface and matched drive. Review plate geometry, rod connection, edges, sprockets and operating conditions.

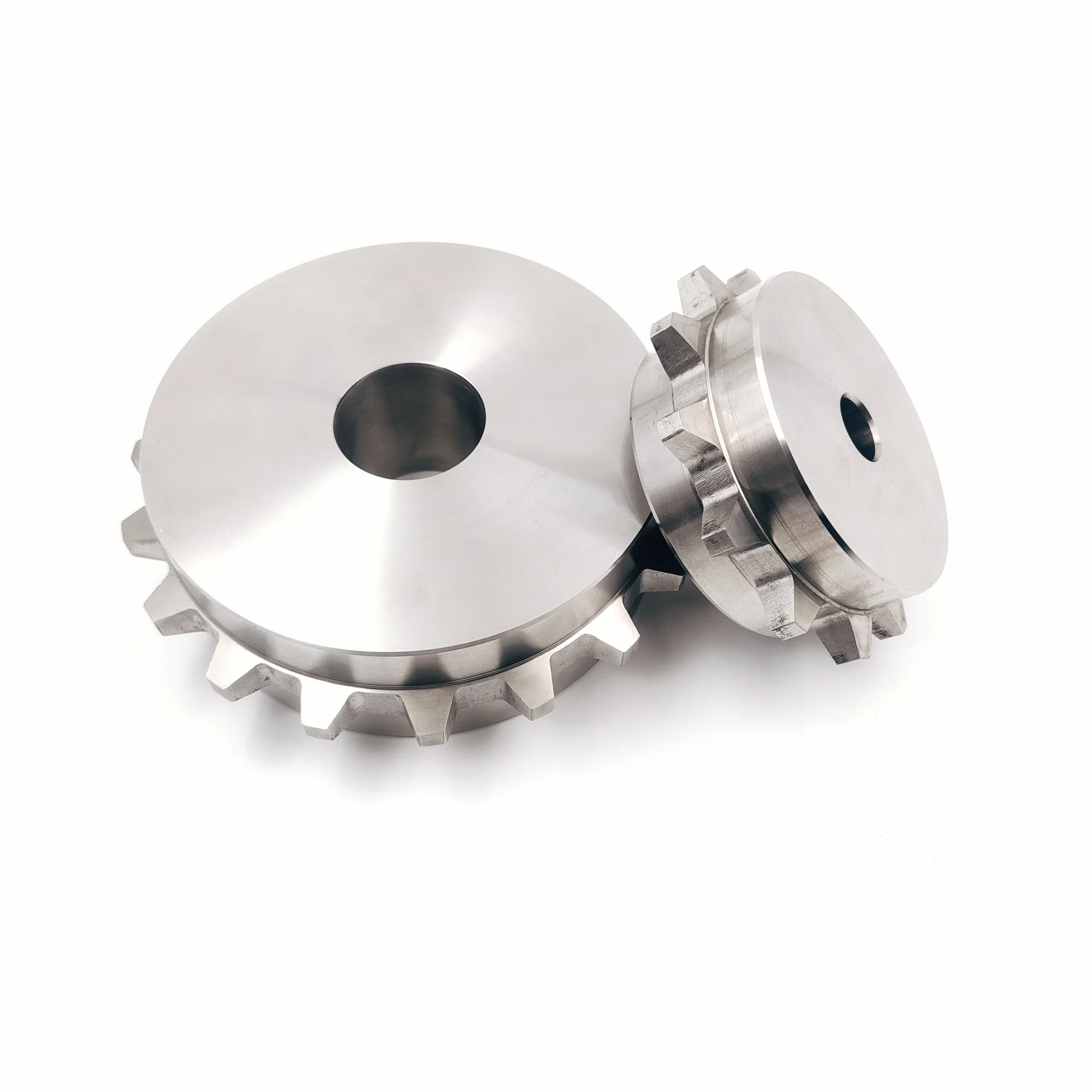

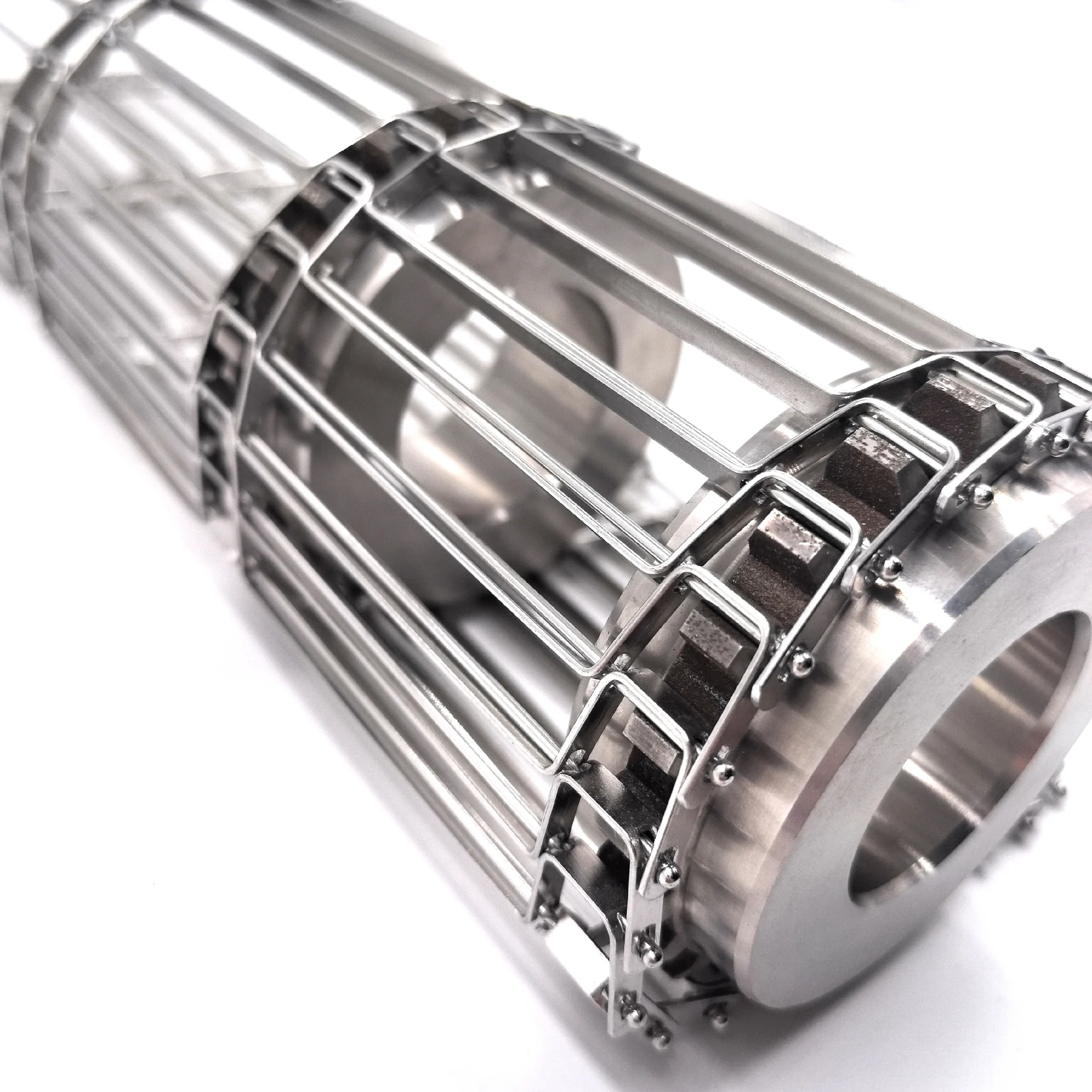

TMMatched drive components reviewed together with belt pitch, rods, chains or edge engagement. Send the existing sprocket drawing, tooth details or clear photos when available.
Application Context Photos
Use the visible product and belt-surface context to narrow the first discussion. These photos illustrate application categories; they do not replace equipment, process or drive-interface review.

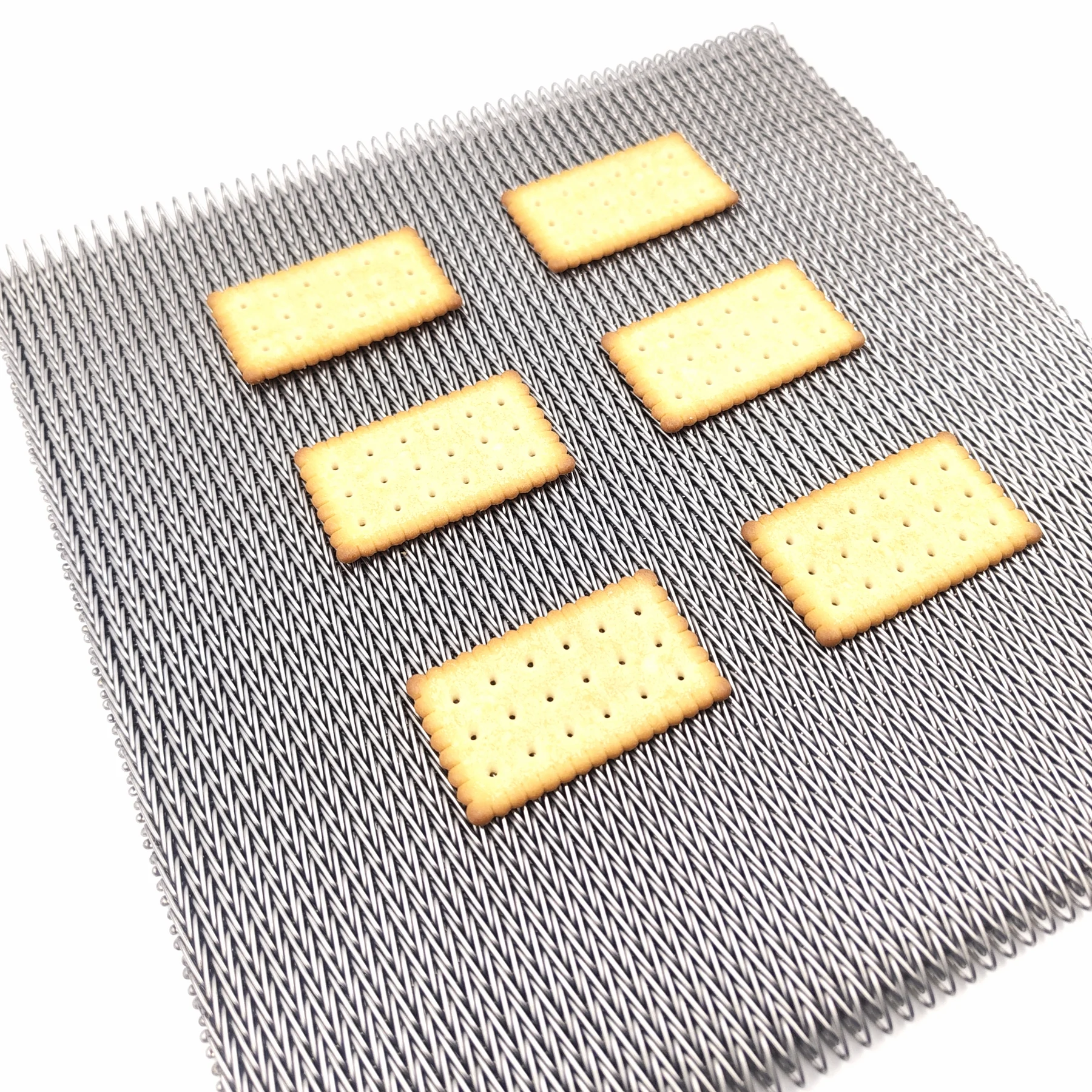

TMBiscuits displayed on fine metal conveyor mesh.

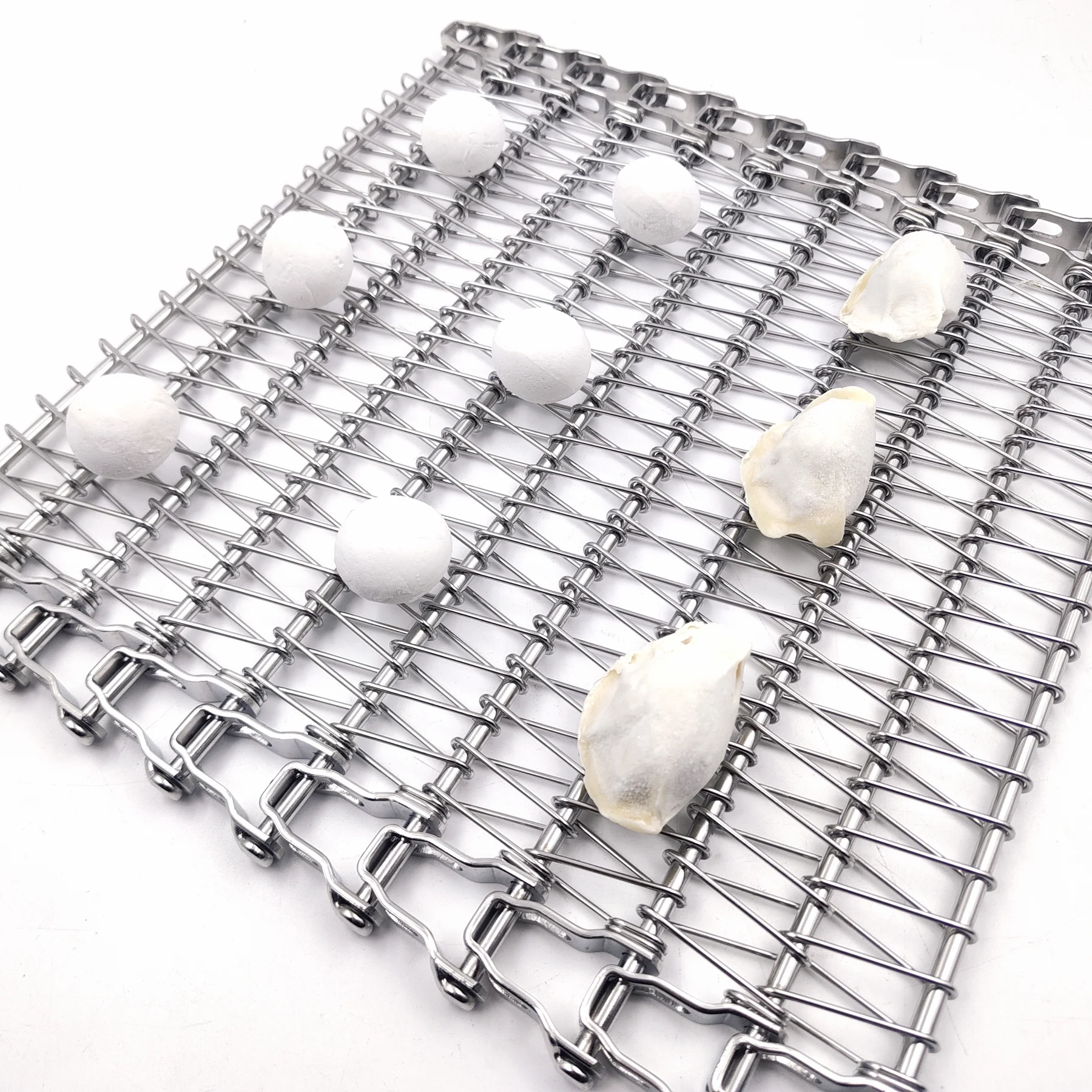

TMPrepared food portions displayed on an open metal conveyor belt.

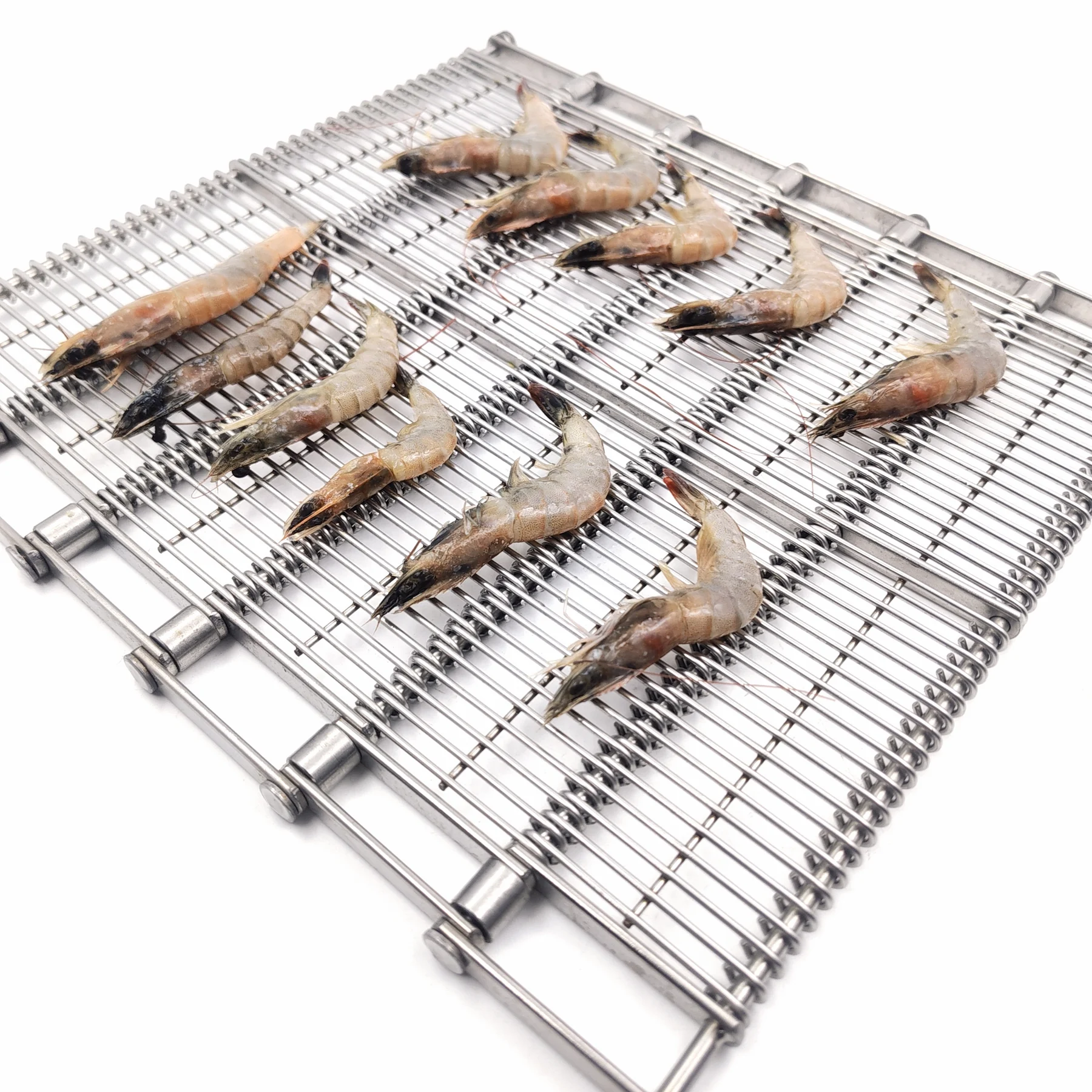

TMWhole shrimp displayed on an open linked metal conveyor belt.

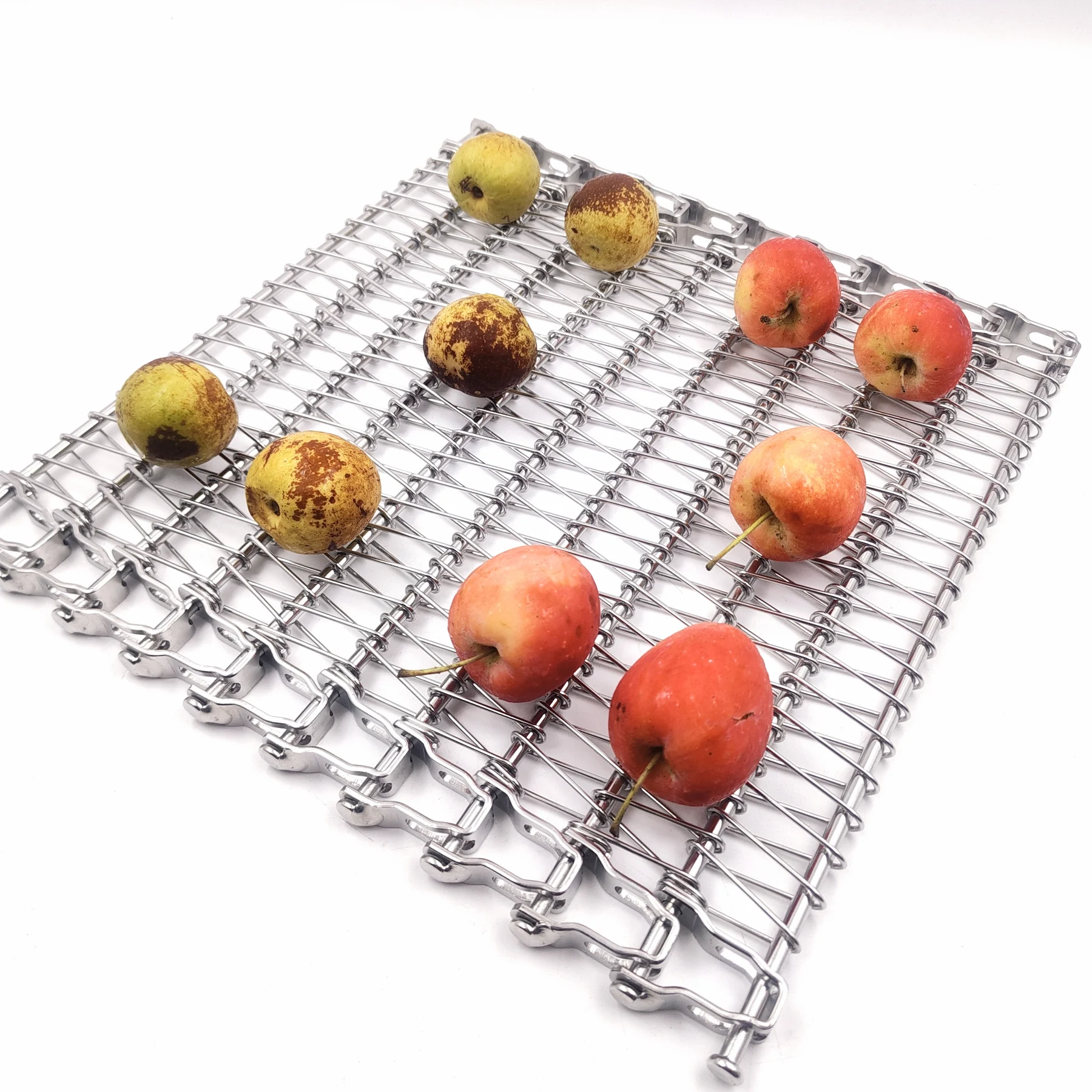

TMWhole fruit displayed on an open metal conveyor belt.

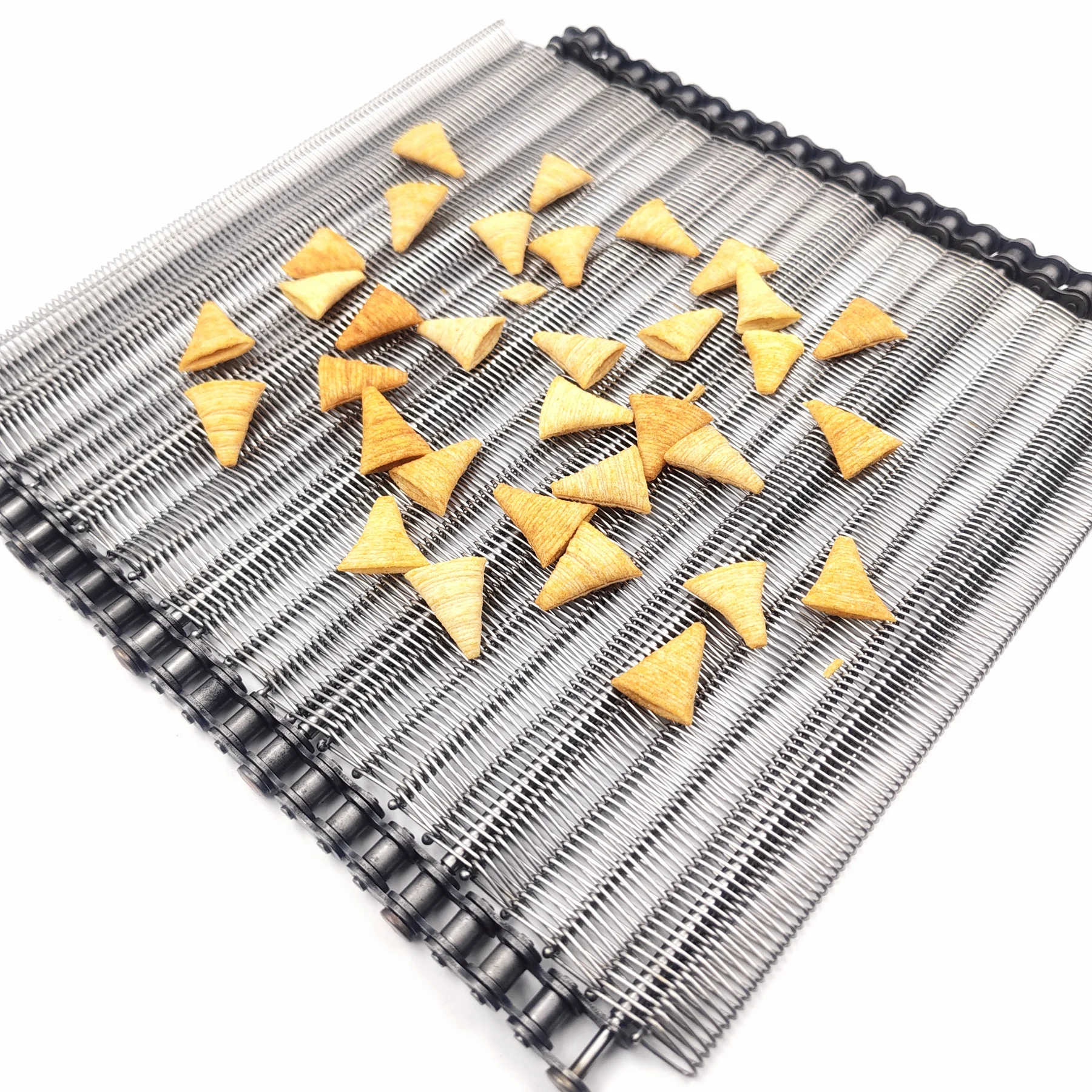

TMCone-shaped snack pieces displayed on fine metal conveyor mesh.

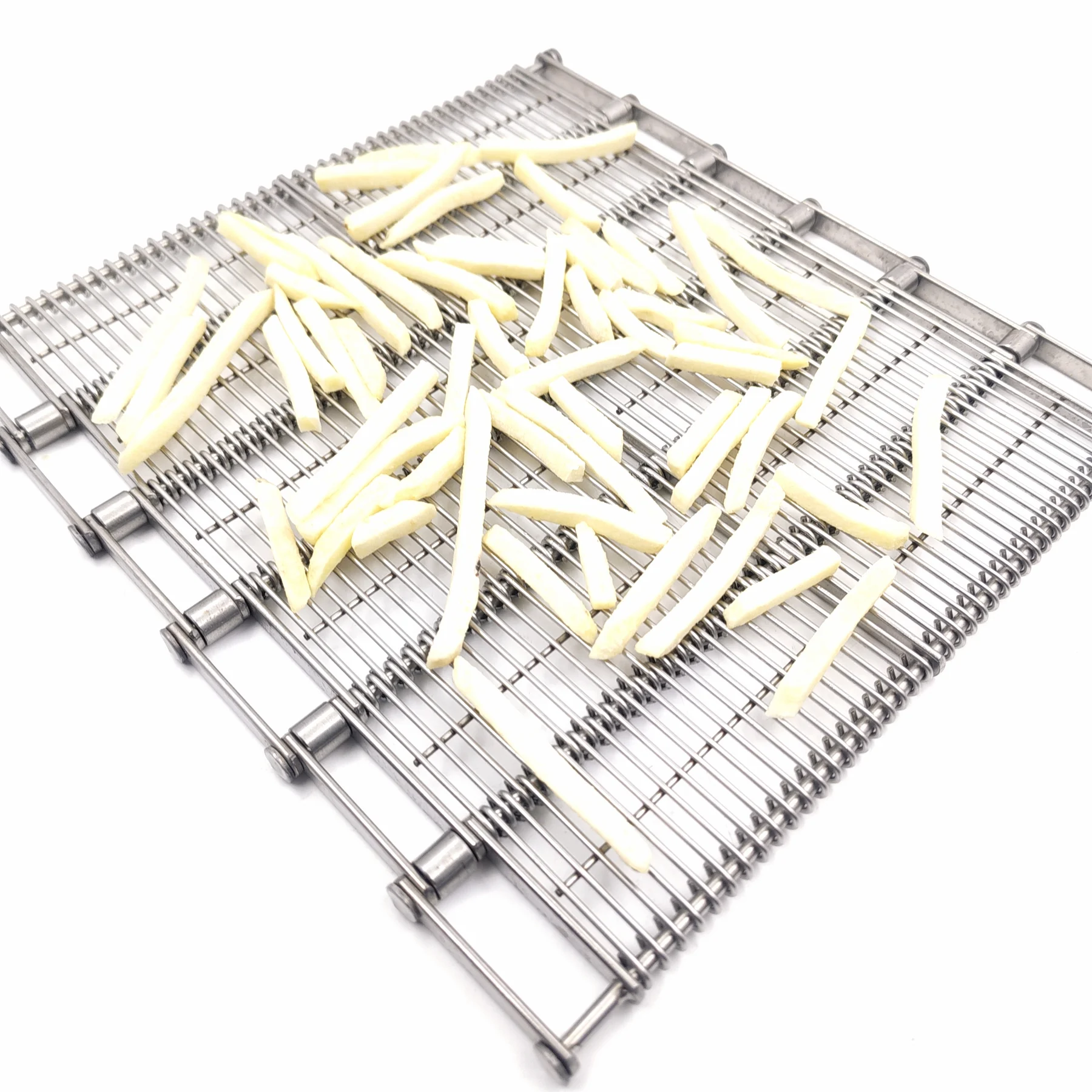

TMCut potato strips displayed on an open linked metal conveyor belt.

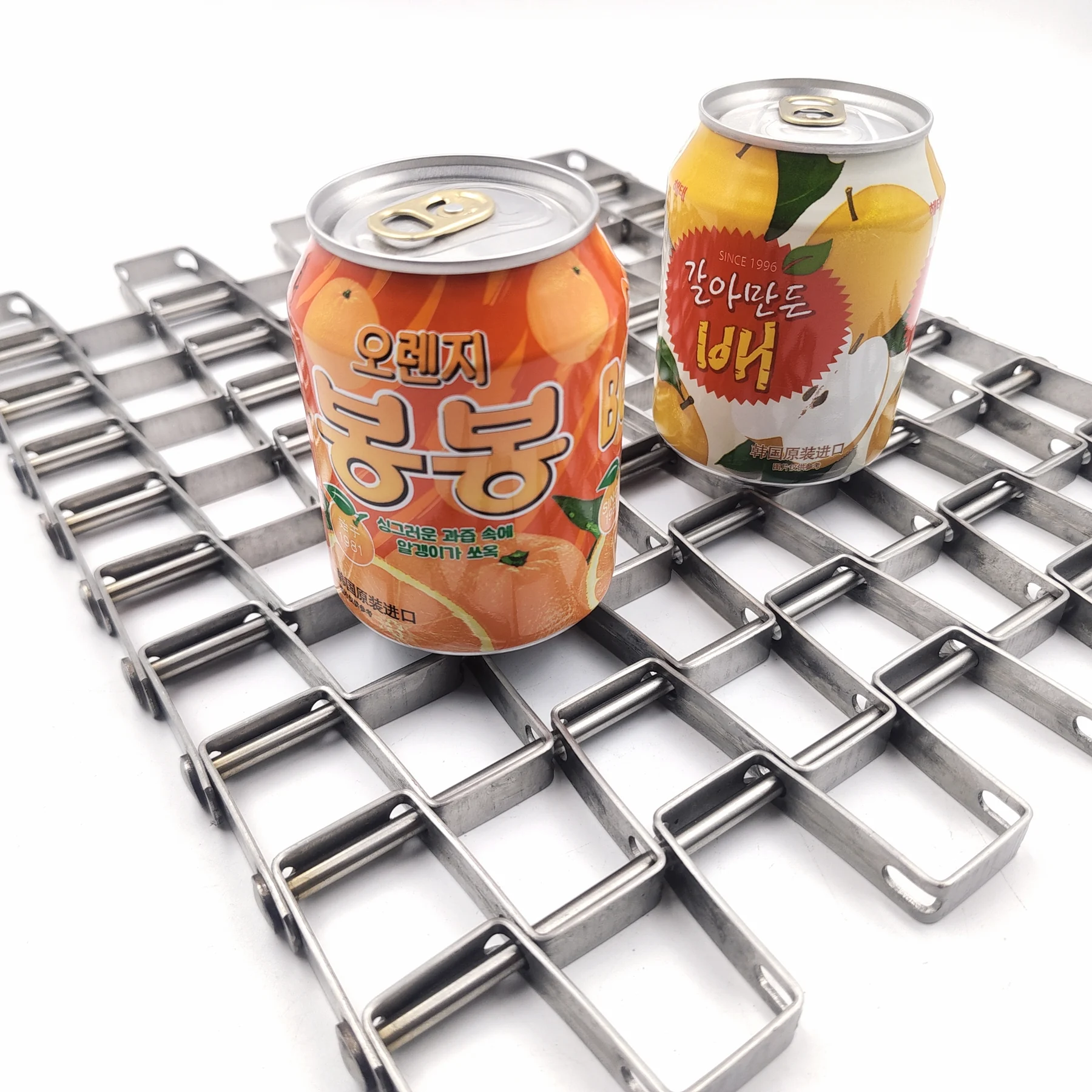

TMBeverage cans displayed on an open metal conveyor belt.

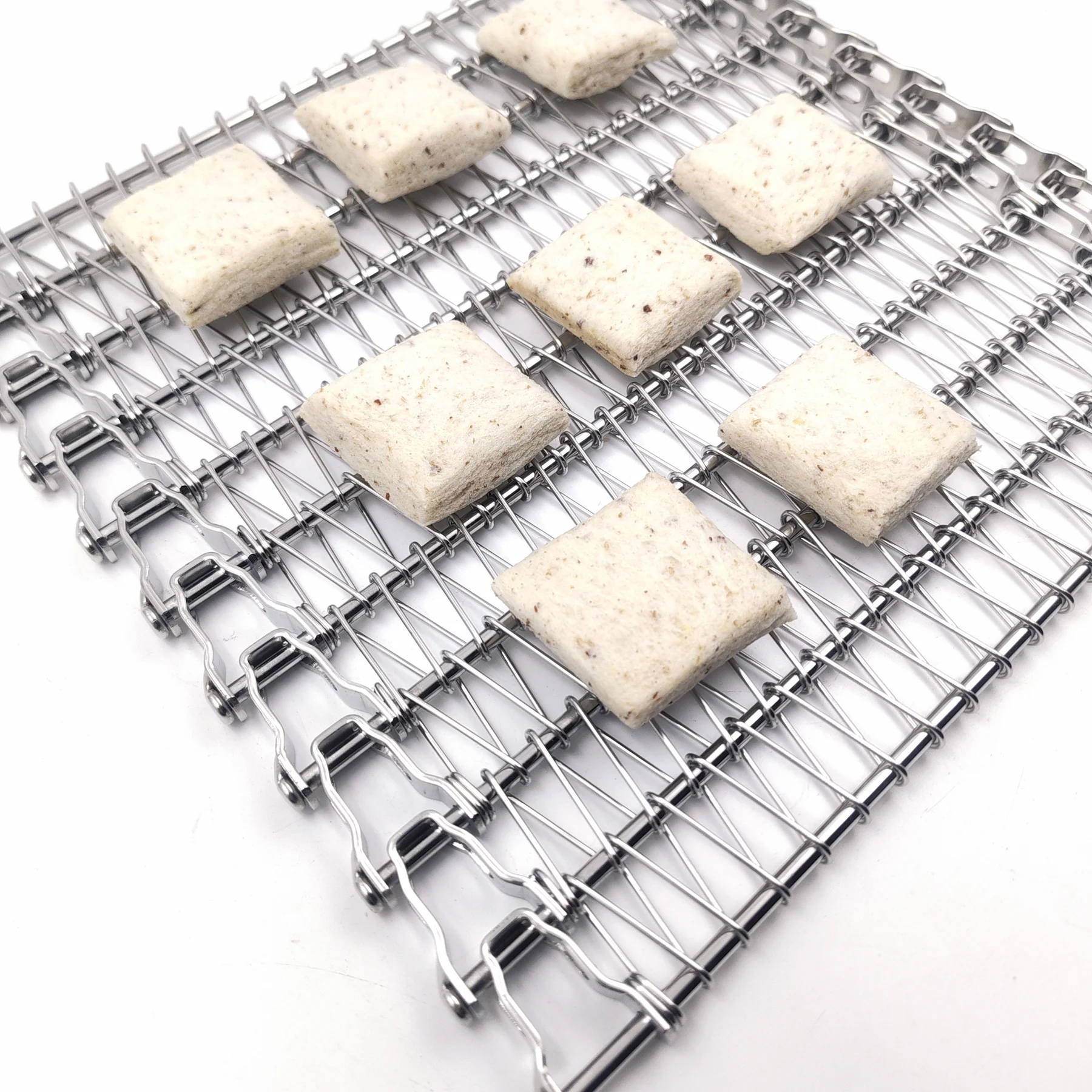

TMSquare prepared food portions displayed on a chain-edged open metal conveyor belt.

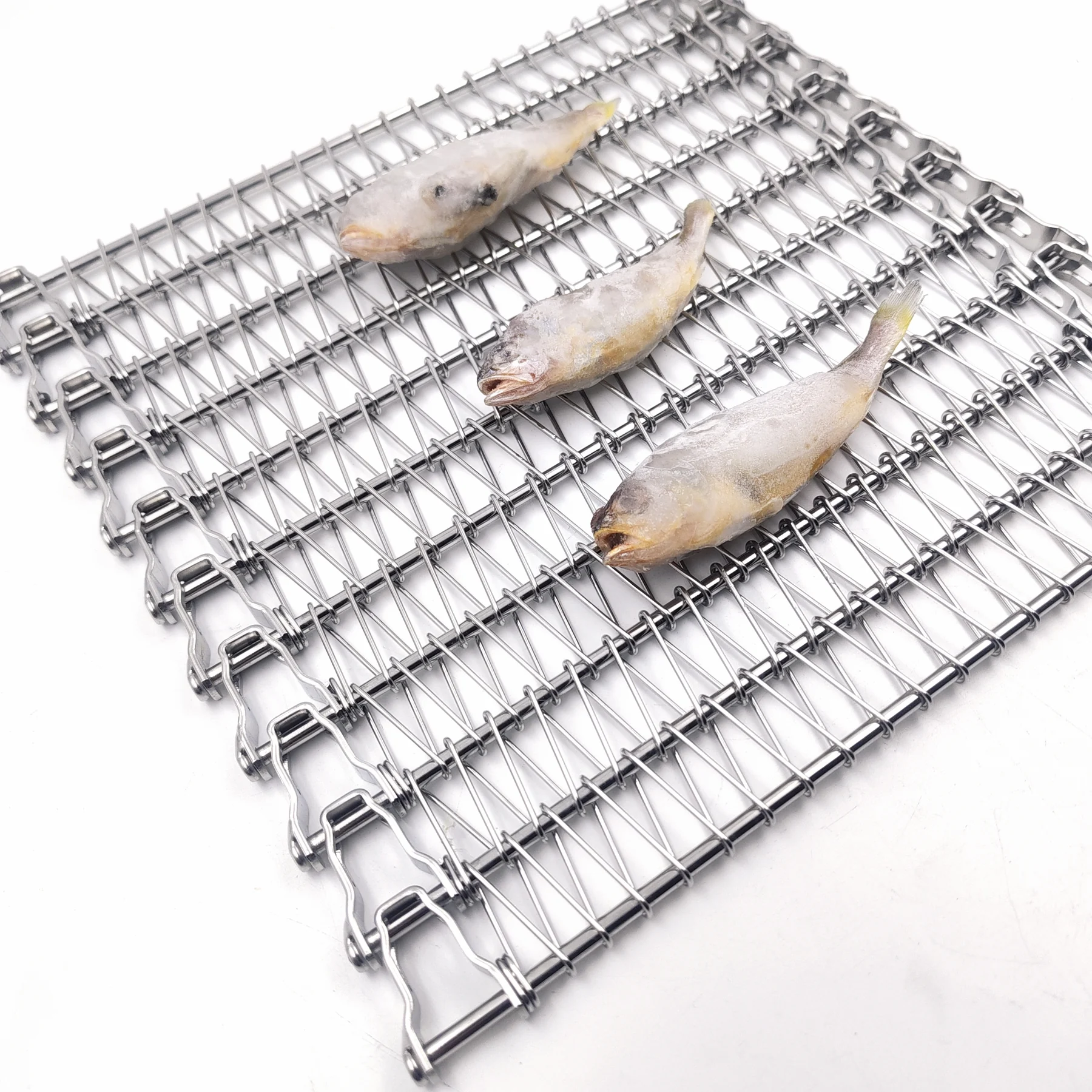

TMWhole fish displayed on a chain-edged open metal conveyor belt.

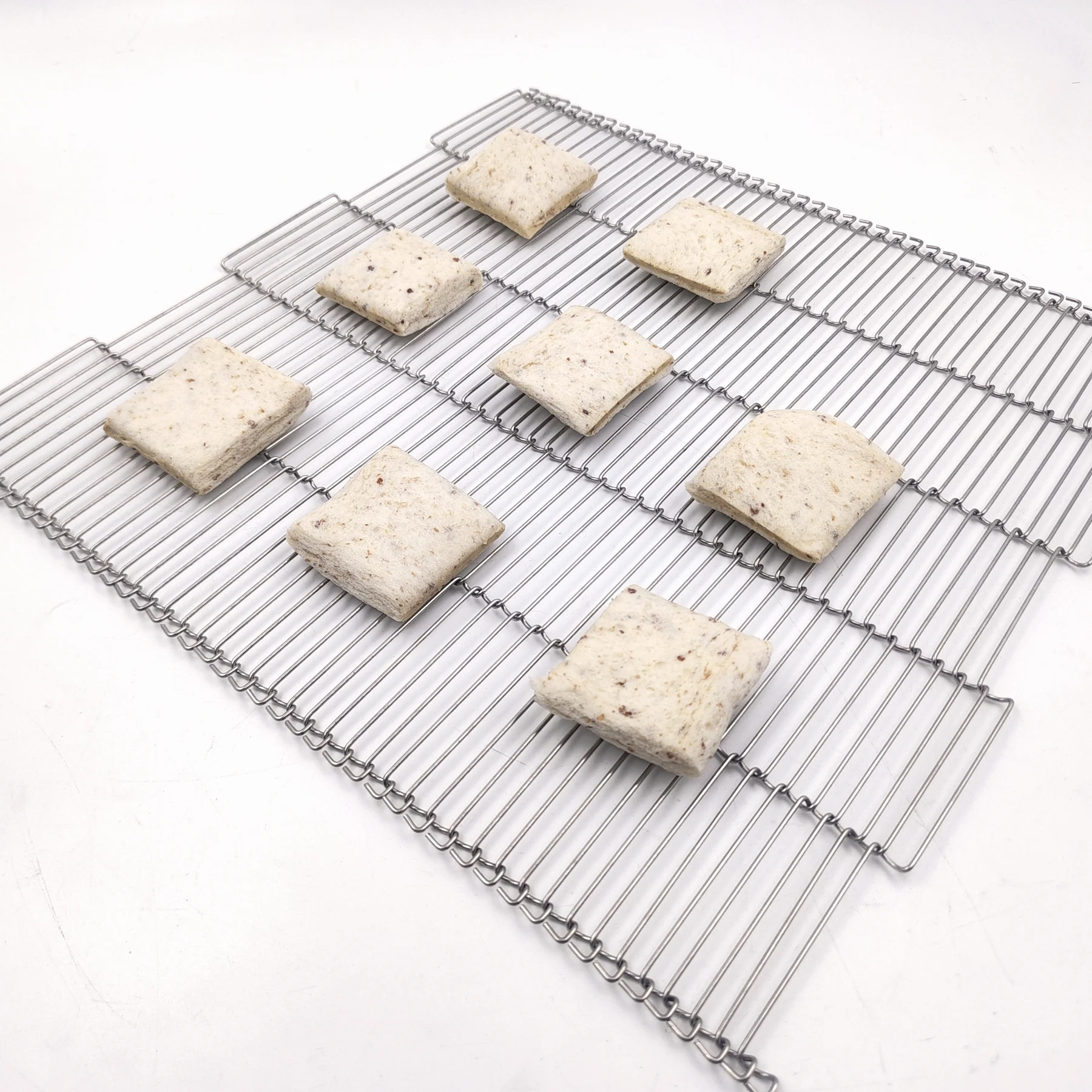

TMPrepared food portions displayed on an open ladder-style metal conveyor belt.

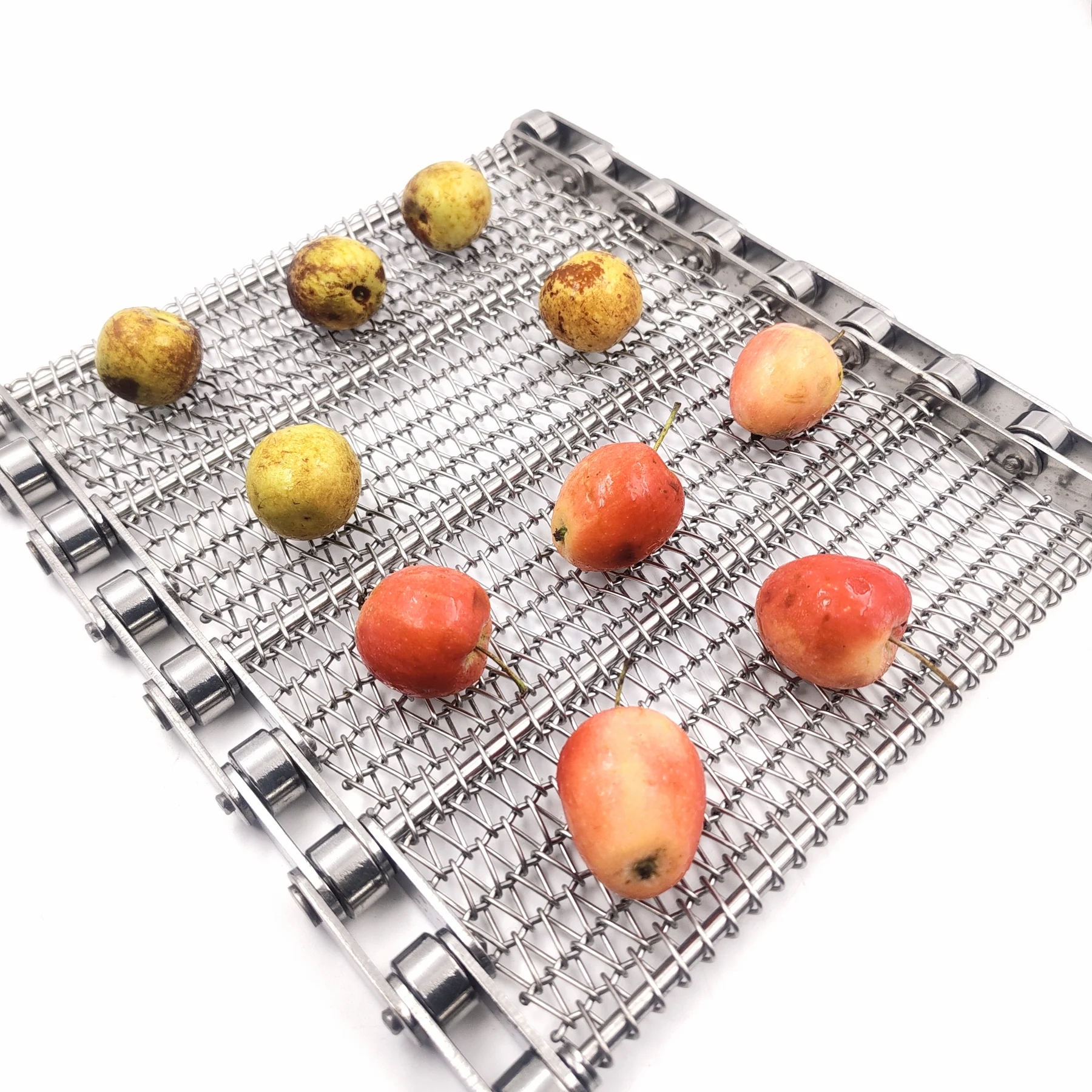

TMWhole fruit displayed on a chain-edged metal mesh belt.

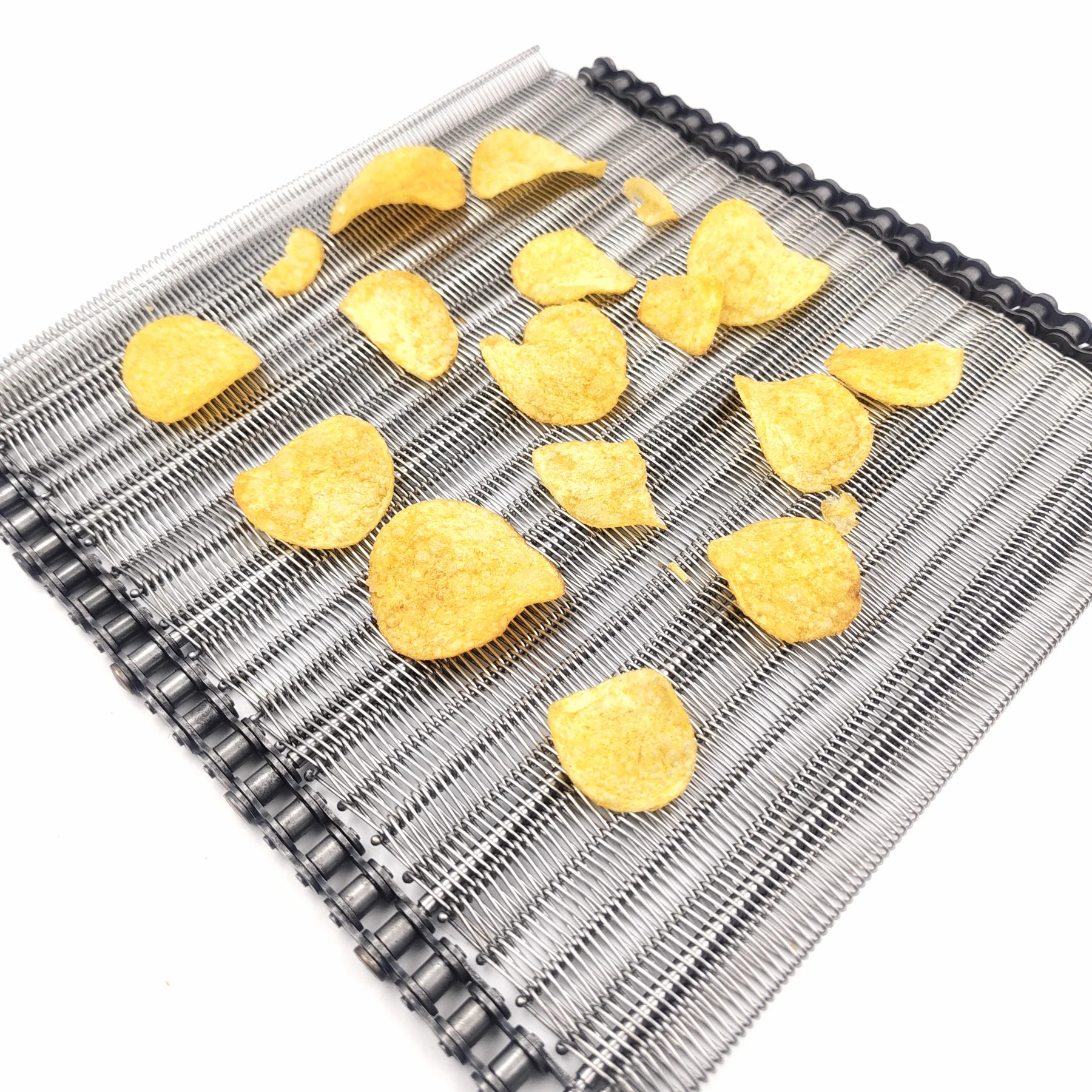

TMCurved chips displayed on fine metal conveyor mesh.

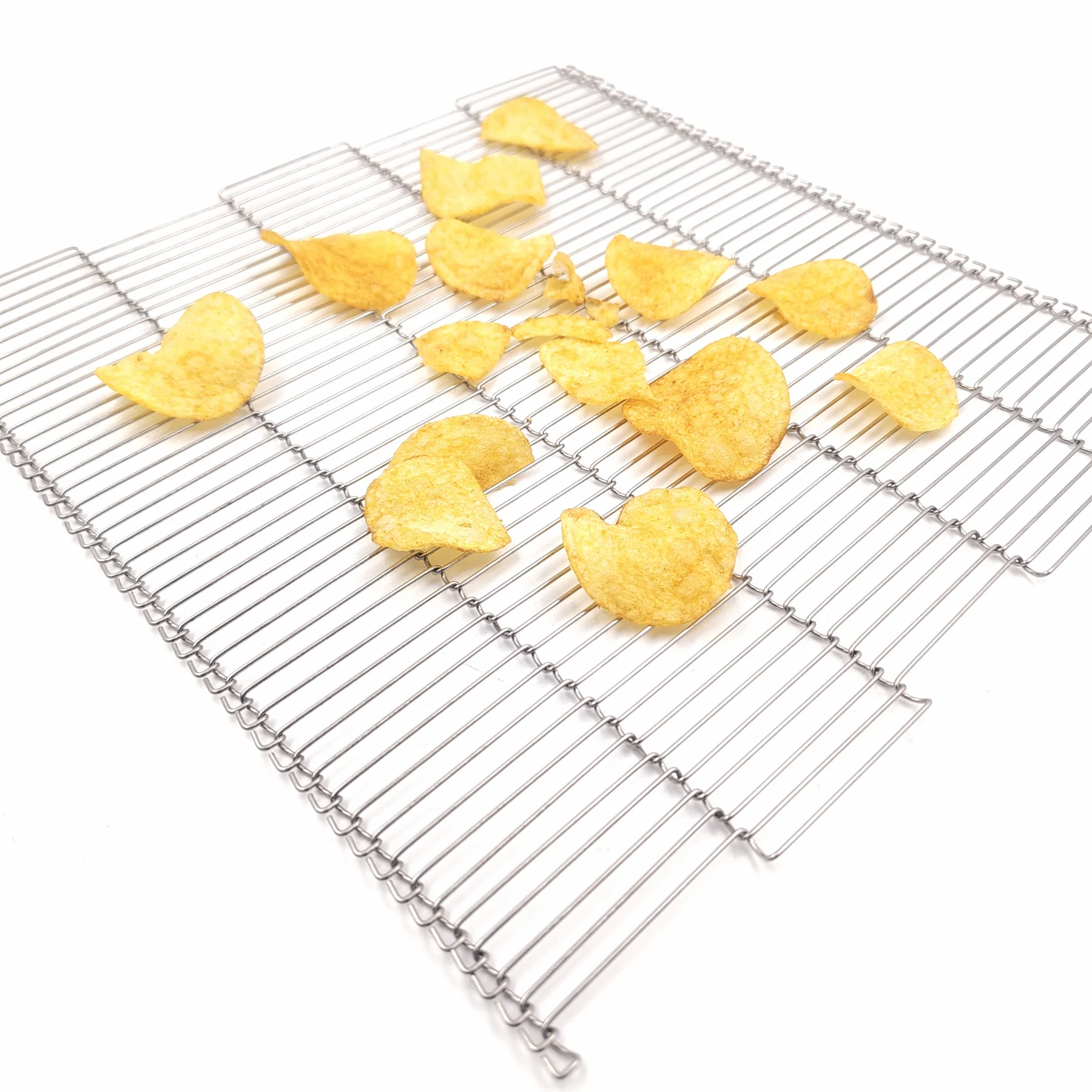

TMCurved chips displayed on an open ladder-style metal conveyor belt.

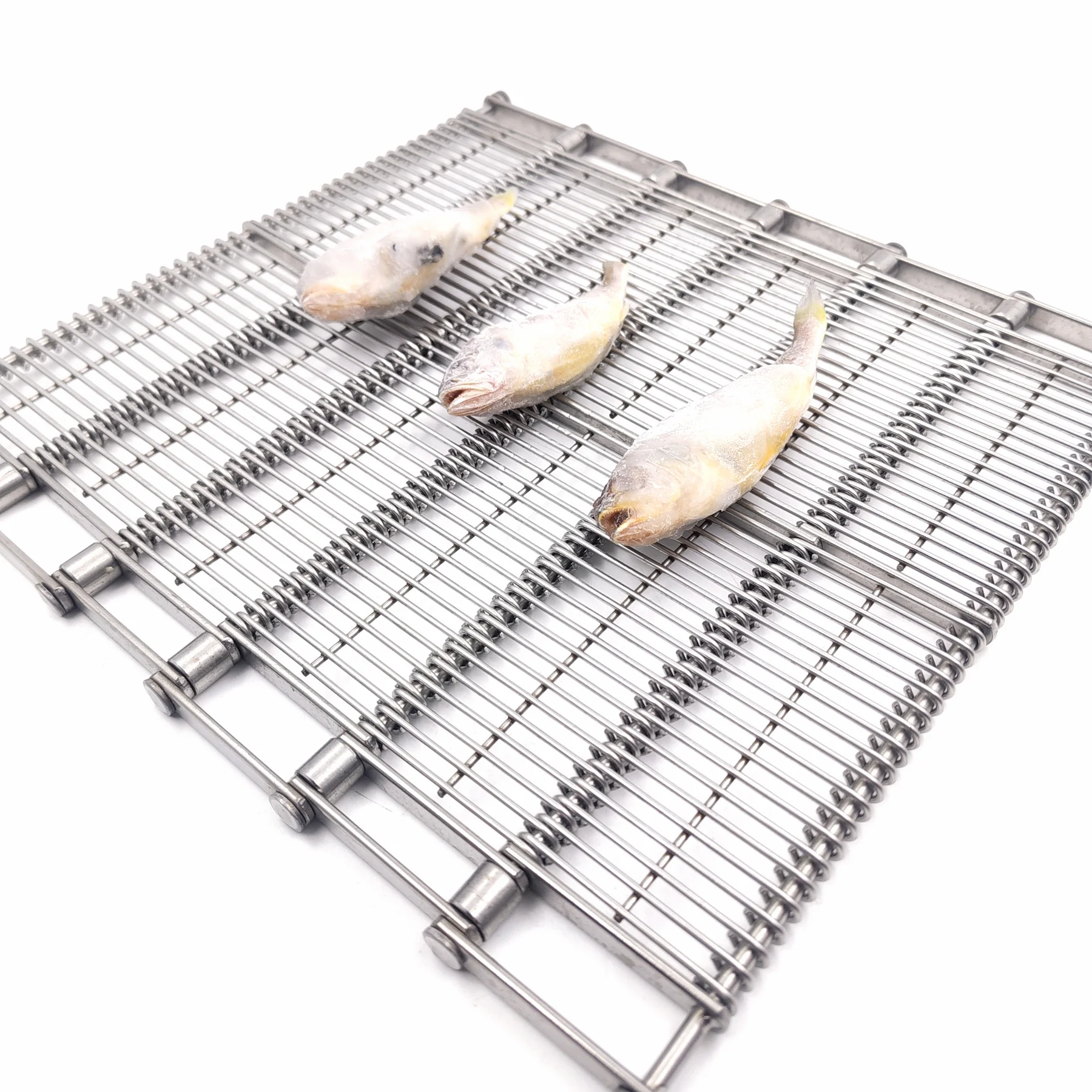

TMWhole fish displayed on a linked open-wire metal conveyor belt.

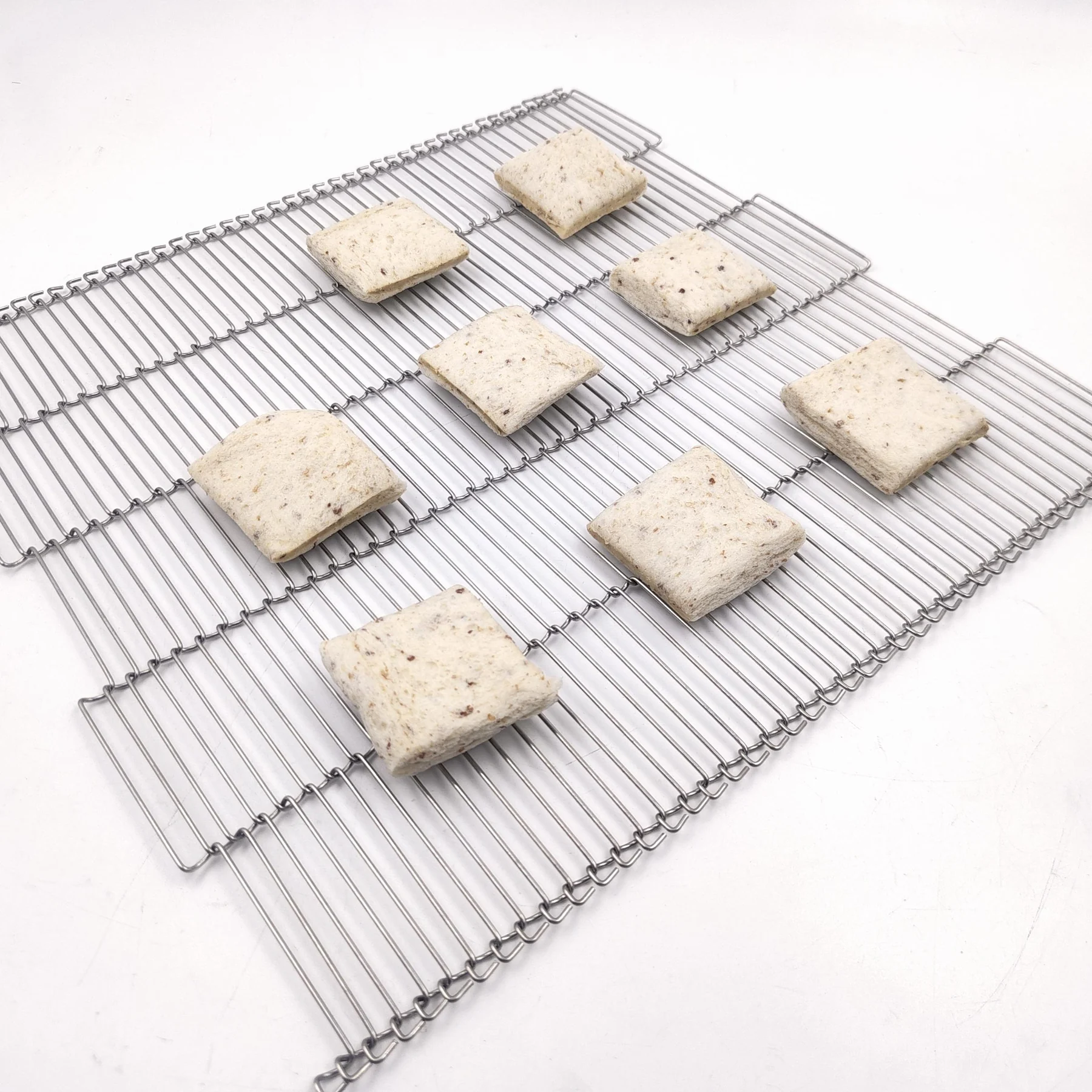

TMPrepared food portions shown on a Z-Type Ladder Belt for visible product-support context.

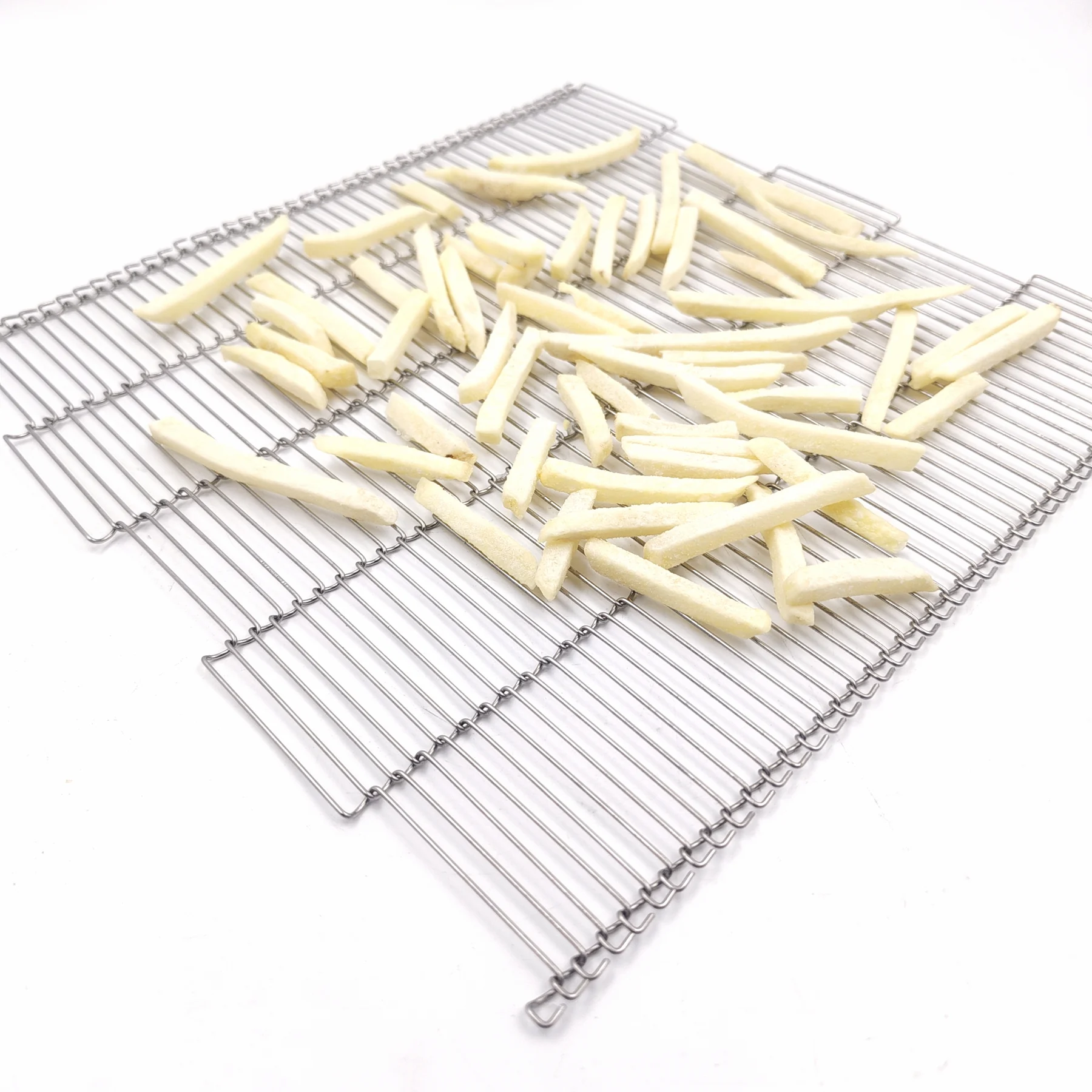

TMCut potato strips shown on a Z-Type Ladder Belt for visible support and opening context.

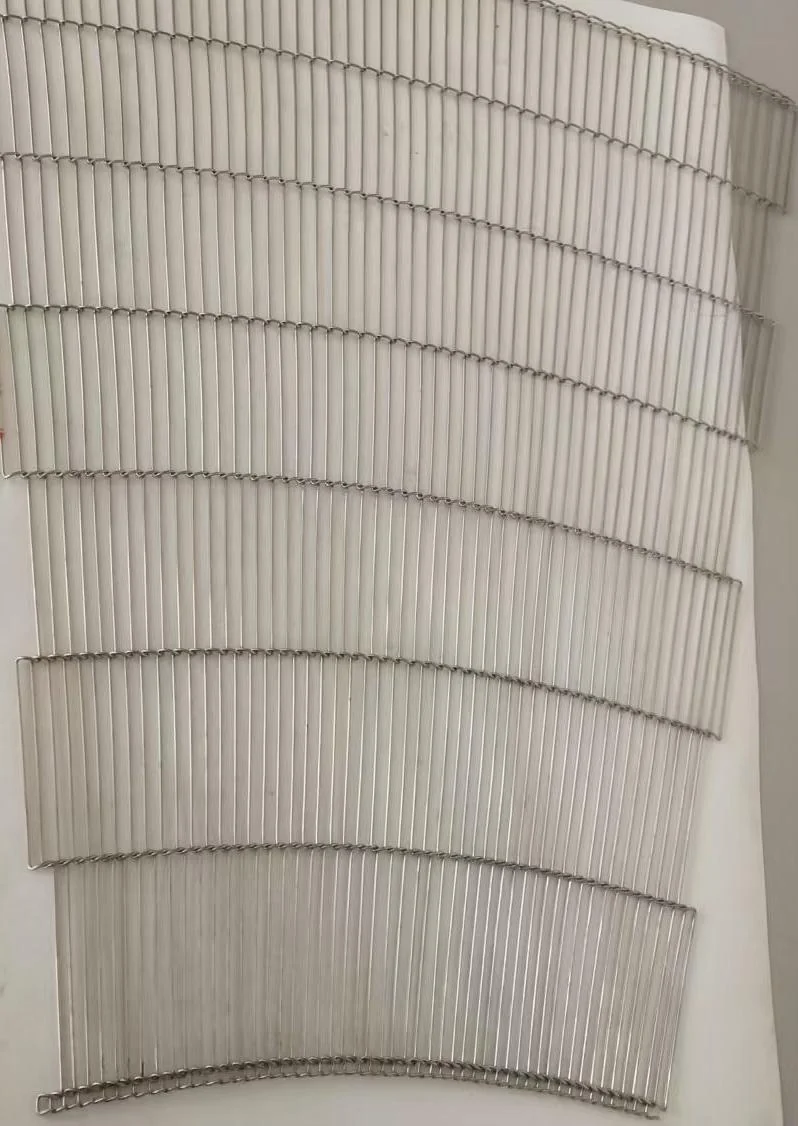

TMOverall Z-Type Ladder Belt structure shown as a visual reference; project dimensions require confirmation.
Final belt configuration follows confirmed equipment, conveyed-product, process and drive-interface data.
Start the Review
You do not need every parameter before the first contact. Clear photos and known dimensions help define the next questions for an OEM, replacement or repeat-supply review.
Share the equipment type or model, layout, drum or cage information, conveyor path, transfers and available drive details.
Include an overall photo plus the edge, underside, joint, sprocket or roller, and installed drive area. Add the old drawing, sample reference or visible problem where available.
Share width and length, belt pitch or cross pitch, wire and cross-rod diameter, edge or chain finishing, running direction, and shaft, sprocket or roller data where available.
Share the conveyed product, process, operating temperature if known, load, speed, cleaning conditions, quantity, project type and target schedule.
Replacement or Eye Link project? A clear overall photo, edge / underside / drive photos, a ruler reference and the existing sprocket or roller drawing can help start the comparison.
Buyer Questions
Use these answers to choose the right review path without treating a product photo or reference range as a final specification.
Send Project InformationStart with the closest equipment application or product structure. The final family and configuration depend on confirmed equipment geometry, process conditions, conveyed product and drive interface.
Use the OEM route when the equipment and belt specification are still being aligned. Use the replacement route when an installed belt, old drawing, sample or existing drive system provides the project reference.
Send overall, edge, underside, joint and drive-area photos, plus any measurable width, pitch, wire or rod diameter, running direction and old drawing or order reference.
Where applicable, belt pitch, chains or edge engagement, sprocket profile, tooth information, shaft and existing wear are reviewed as connected project inputs.
Yes. Reference the previous order, approved drawing or confirmed sample and identify any equipment, product, material or operating changes before the next supply is reviewed.
No. Product images, descriptions and reference information establish a starting point. Final values and structure follow the reviewed project data and approved drawing or specification.
Use the JBL Mesh Belts Engineering Knowledge Center for measurement, replacement preparation and troubleshooting guidance, then return here to start the product or project review.
Engineering Knowledge Center
Use the technical Knowledge Center for belt measurement, replacement preparation and troubleshooting guidance. Product-specific configuration remains subject to project review.
Project Inquiry
You do not need every dimension before contacting us. For a new equipment project, send the system layout or drive details. For a replacement, send clear photos and any existing drawing. For repeat supply, reference the approved order or drawing.
info@jblmeshbelt.comProduct configuration and suitability are reviewed against confirmed project information before specification confirmation.
