Belt and Sprocket Integration Should Be Confirmed Before Production
A correct belt can still fail early when the sprocket pitch, tooth profile, bore, keyway, or installed drive route is wrong. JBL Mesh Belt reviews the belt and sprocket as one working system.
Drive matching evidence
Drive-Interface Photos Document Visible Contact Details
Pitch, tooth profile, bore, keyway, chain edge, and worn teeth can be reviewed from suitable photos. Powered engagement requires a separately identified video or test record.

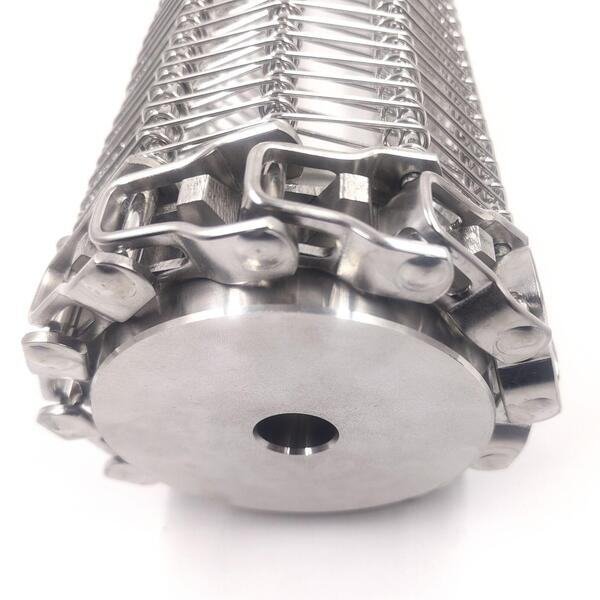

Spiral belt and sprocket reference
The photo records visible belt and sprocket position; movement, load, speed, and engagement require separate evidence.

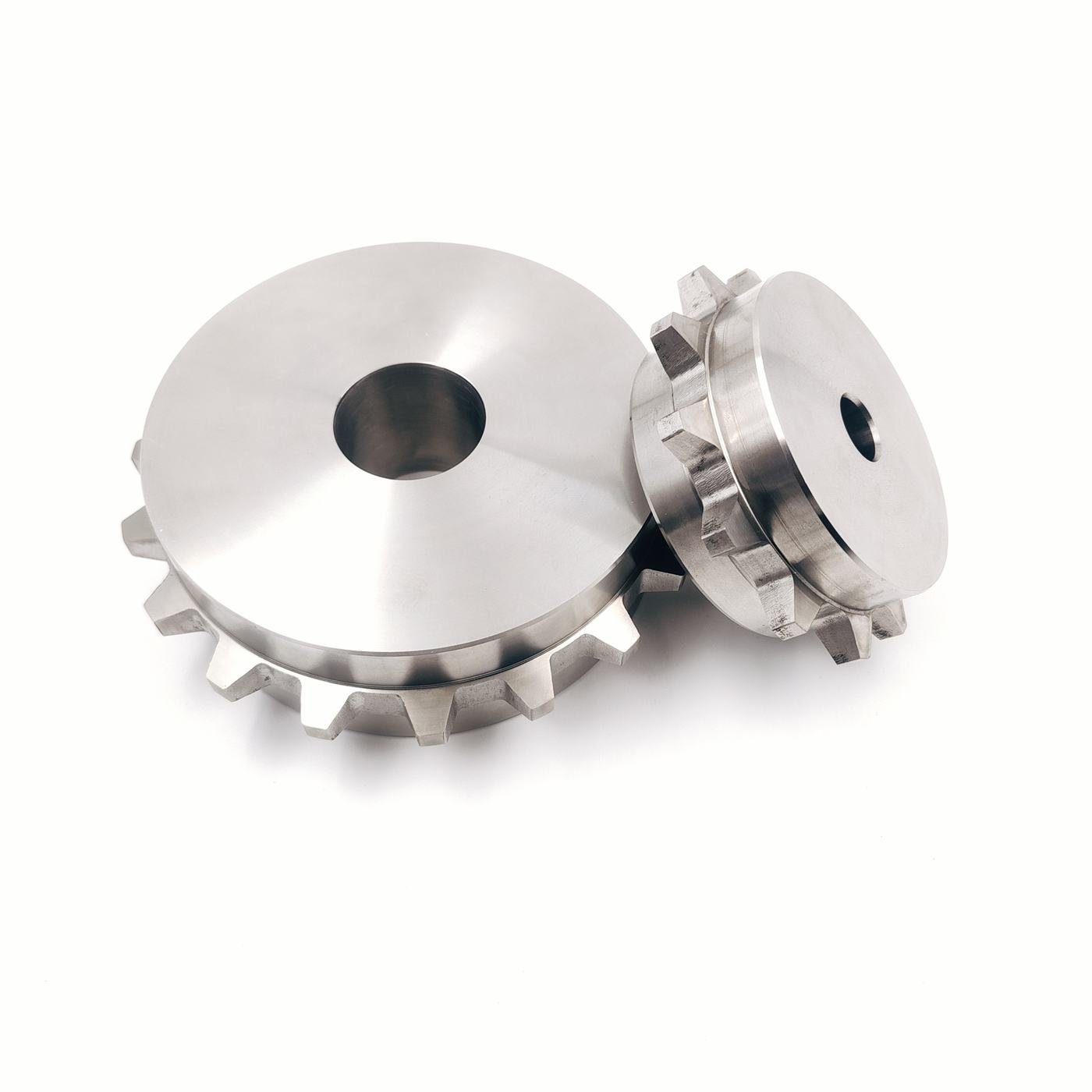

Sprocket set reference
A component photo can document the supplied set; dimensional matching follows the confirmed project reference.
Evidence scope: Photos and records establish only the visible product, measurement, inspection, test, or packing step shown. They do not by themselves confirm installed performance or interchangeability. Final release follows the confirmed drawing, operating data, drive interface, and agreed validation scope.
drive-side review logic
The Interface Is Often Where Replacement Risk Starts
Pitch and Tooth Profile
Belt pitch and sprocket tooth profile should be checked together. A pitch mismatch can create jumping, impact wear, noise, or early belt damage.
Bore, Keyway, and Shaft Fit
Sprocket bore, keyway, set screw, and shaft-side details are part of the same review when replacement sprockets are supplied.
Old Sprocket Wear
A new belt can fail early when it runs on worn or mismatched sprockets. Old sprocket photos should be reviewed before production release.
Running Evidence Before Release
When the project is sensitive, belt-and-sprocket running videos can show engagement, contact path, and repeatability before shipment.
photo evidence package
Photos Should Help Confirm the Drive Decision
For replacement projects, one belt photo is not enough. Sprocket teeth, bore, keyway, chain edge, running path, and installed wear marks help decide whether to reuse, replace, or machine matched drive parts.
Evidence to Send
Old or Matched Sprocket Photos
Useful for checking tooth count, bore, keyway, material, and whether replacement sprockets should be supplied with the belt.
Evidence to Send
Static Belt / Sprocket Position Reference
Use this still image to review visible drum-contact and guide-clearance context. It does not confirm belt movement or installed running performance.
Evidence to Send
Side Drive Detail
Useful when the belt is driven from the side and the engagement point may affect tracking or edge wear.
running evidence
Verification Media for Sprocket Engagement and Drive Contact
Use these positions for flat wire, eye link, spiral freezer, chain-driven, and other sprocket-driven belt projects.
Drive Evidence
Flat Wire Sprocket Engagement Test
Running video for flat wire belt pitch contact and sprocket engagement.
Drive Evidence
Flat Wire / Honeycomb Belt Running Test
Running video for edge behavior, tracking, and product-support surface movement.
Drive Evidence
Eye Link Belt and Sprocket Running Test
Running evidence for eye link belt drive contact and sprocket interface.
Drive Evidence
Second Drive Contact Angle
Additional eye link running view for engagement review with the background minimized.
Drive Evidence

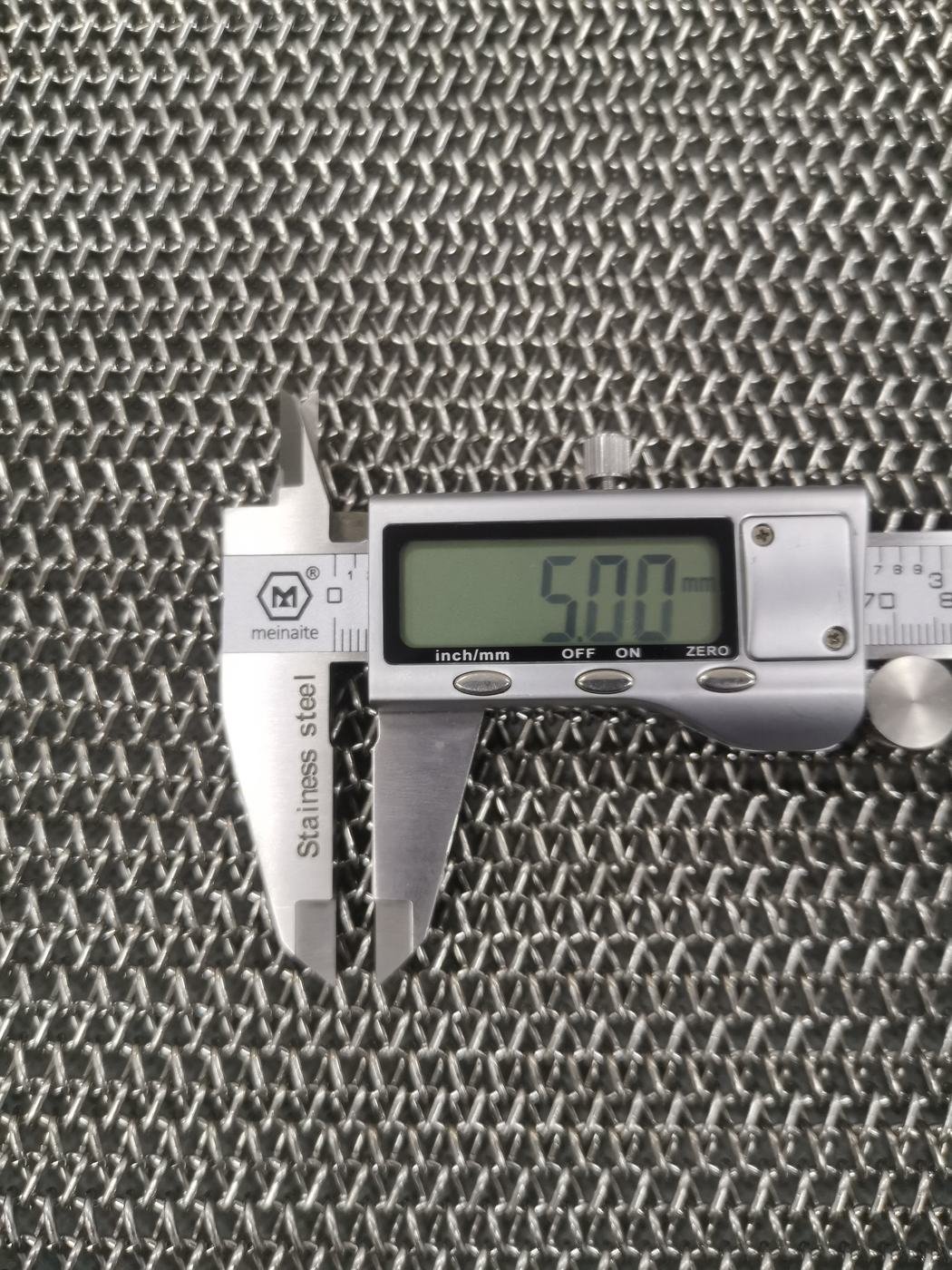

Spiral Belt Dimensional Inspection
Caliper and tape measurements of pitch, edge, and width. This clip does not show a powered drum or sprocket running test.
Drive Evidence
Final Matched Component Release
Final belt, sprocket, spare rods, packing, and shipping evidence.
matched components
Different Belts Need Different Sprocket Evidence
A sprocket is part of the drive interface. Each belt family has a different contact route, pitch route, edge route, and failure mode.
Flat wire belt: pitch and tooth contact.
Spiral freezer belt: drum path, turn ratio, and drive engagement.
Eye link belt: chain edge, roller, and sprocket interface.
Chain-driven belt: chain pitch, sprocket profile, and side alignment.
Component Review
Flat Wire Sprocket Contact
Check pitch contact, tooth profile, drive path, and worn sprocket risk.
Component Review
Static Spiral Belt / Sprocket Contact Reference
This still image records visible belt and sprocket position for pitch and contact review. Movement, load, speed, and engagement under power require separate video or test evidence.
Component Review
Stainless Steel Sprocket
Used when stainless drive components, bore, keyway, and exact tooth route need confirmation.
Component Review
Nylon / Plastic Sprocket Route
Polymer sprockets can be reviewed by material, tooth profile, temperature, and contact load.
Component Review

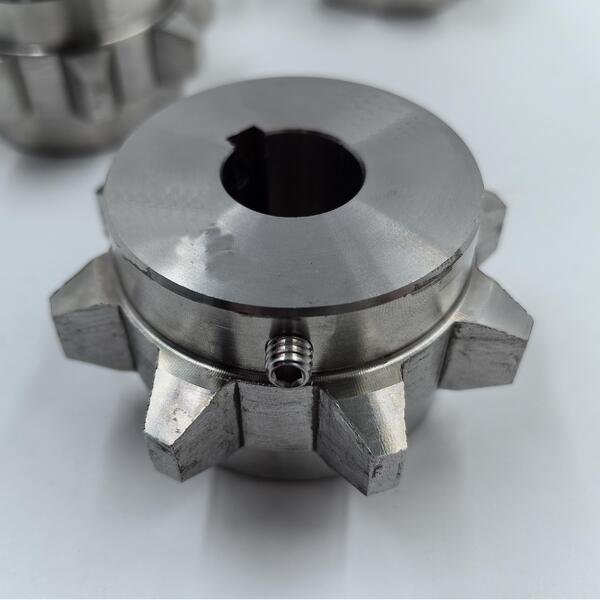

Steel Sprocket Detail
Detail records support bore, keyway, set screw, and tooth surface review.
Component Review

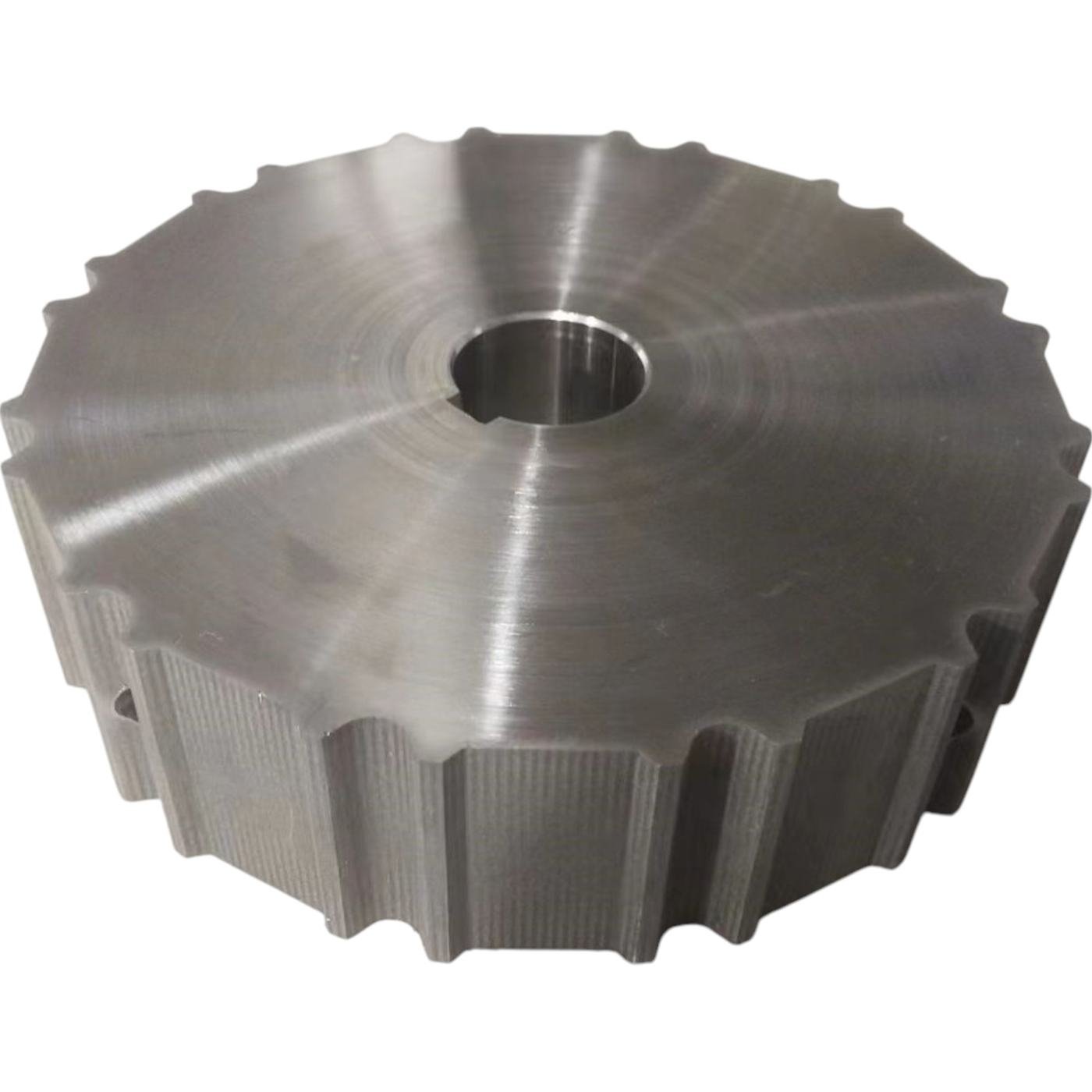

Eye Link Sprocket Interface
