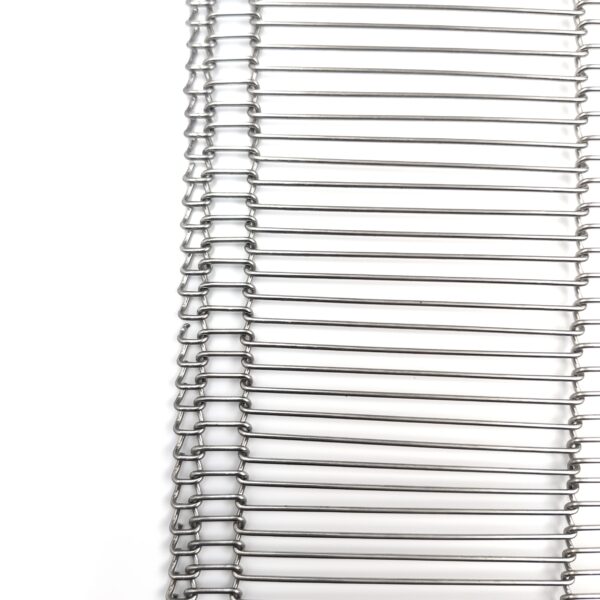

Premium Z-Type Ladder Belts for Clean, High-Angle Conveying
▶ Hygienic Open Structure: Smooth and burr-free welding, and a flat, uniform mesh surface enhance durability and stability.
▶ Clean, Stable Transport on Steep Angles: Excellent for inclined or vertical conveying without slippage, especially in space-constrained layouts.
▶ Tailored to Your Equipment: Options include stainless steel grade (SUS304/316L), pitch, width, edge type (welded or hooked), and custom flights or guards.
Z-Type belts are particularly suited to frying lines, chocolate coating, cooling tunnels, and drying applications in the electronics and food industries.

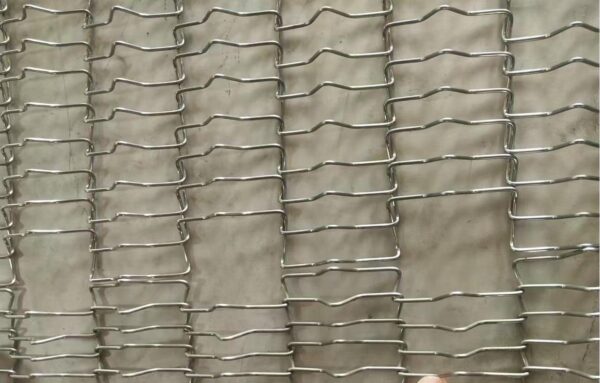

Surface Bump
Special Clenched edge
Clenched edge
Standard
Flat Wire
Rounded
Surface Bump
Surface Bump
Special Belt
Bouble Loop
Special Belt
Contact Us To Customize
Your Z Type Ladder Belt
Key Features of Z-Type Ladder Belt
Their open mesh design ensures optimal cold air circulation for uniform, efficient freezing.
Ideal for Frying, Coating, and Drying Lines

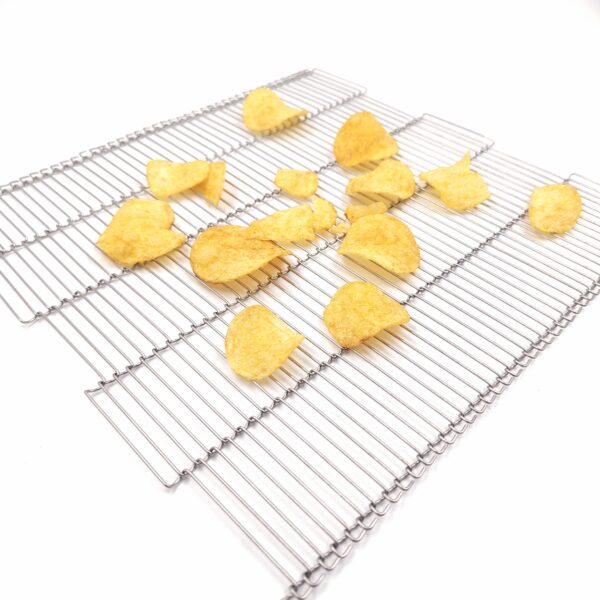

With its minimal contact surface and high-temperature resistance, the Z-Type Ladder Belt excels in frying applications (e.g., snacks, potato chips), chocolate or batter coating, and drying of heat-sensitive electronic components.
Open Mesh Design for Hygiene
The open mesh structure facilitates rapid drainage and airflow, promoting fast cleaning and compliance with HACCP and food-grade requirements.
Lightweight Yet Durable
Made from SUS304 or SUS316L stainless steel, the belt offers a perfect balance of weight and strength, ensuring durability under high-frequency operation.
Minimal Product Contact Surface
Ideal for delicate or sticky items, the minimal surface design prevents sticking, product deformation, or residue buildup during processing.
Customizable for Precise Fit
Available in multiple mesh sizes, wire widths, pitches, welded or hooked edges, and support for sprocket drive integration.
Available in multiple mesh sizes, wire widths, pitches, welded or hooked edges, and support for sprocket drive integration.
Open design lowers friction and energy consumption while allowing effective in-place cleaning, reducing downtime and cost.
Z Type Ladder Belts Standard Specifications
Material:
1

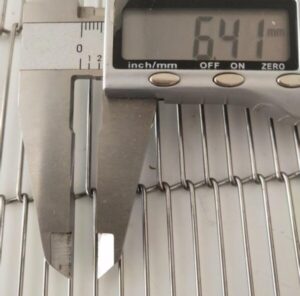

Rod Pitch(mm):
2
Wirel Dia( mm):
3
4
Blet Length(mm):
5
Edge Finish(mm):
6
Belt length:
Z-Type Ladder Belt Components & Accessories
JBL Metal offers a comprehensive range of accessories for Z-Type Ladder Belts, ensuring smooth operation, extended lifespan, and minimal maintenance.
All components are engineered with precise tolerances to maintain belt tracking accuracy and mechanical stability under demanding production environments.

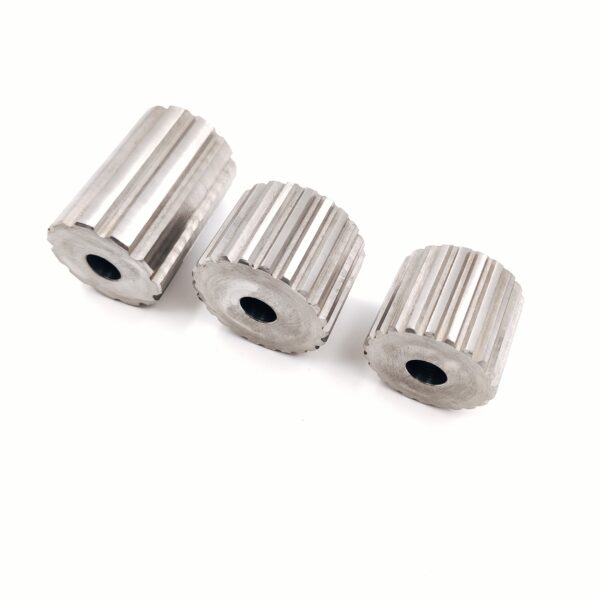

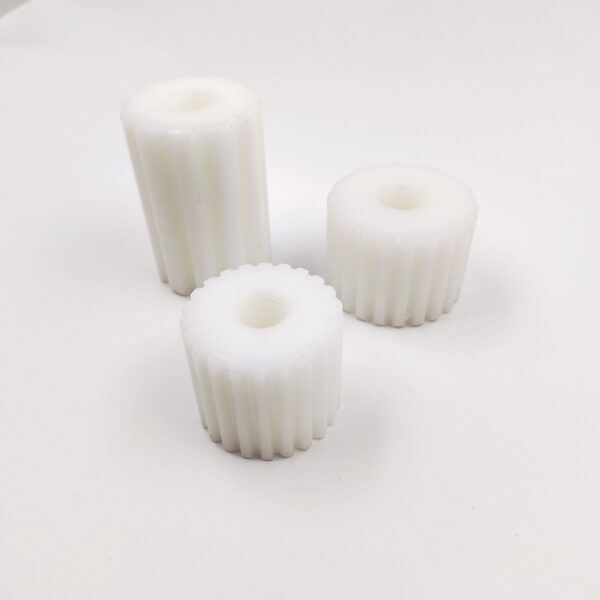

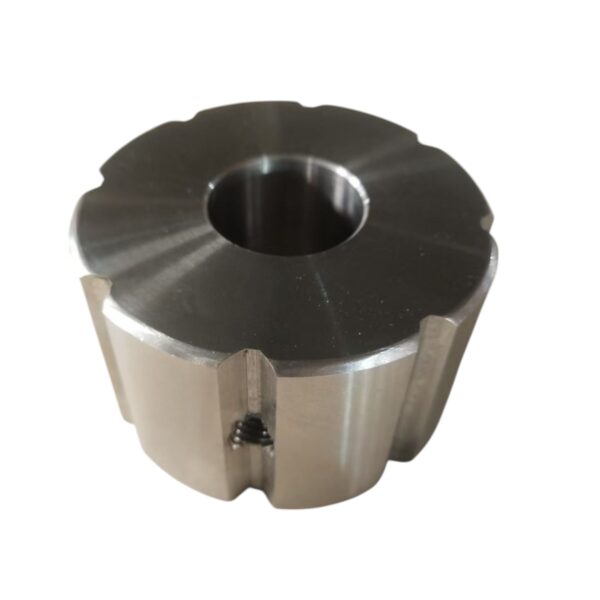

SUS316 Sprockets

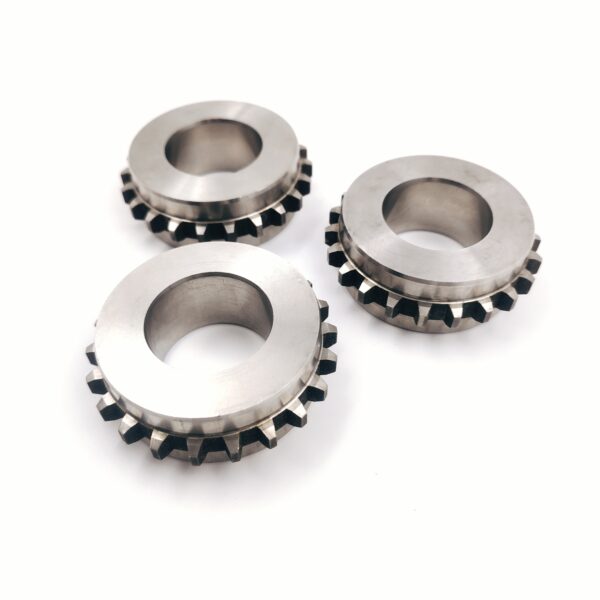

SUS304 Sprockets
Stainless steel Sprockets
Nylon Sprockets
Other More
Customize Your Z-Type Ladder Belt for Optimal Performance
Therefore, we offer fully customizable Z-Type Ladder Belts tailored to your specific application, ensuring optimal performance and durability.
Typically 4–15mm.
Adjustable rod and strip pitch to suit product size and load, typically 4–15mm.
Span (Length Pitch)
SUS304/ SUS316L/ Carbon Steel
Flights / Dividers
